Height of centers over the bed: 1250 mm
Turning diameter over the bed: 2480 mm
Max work-piece weight: 10000 kg
Max torque at the faceplate: 20000 kgm
Drive capacity: 45 kW
Working voltage: 3x380 V
Working frequency: 50 Hz
Nominal connection power: 50 kW
Nominal current: 125 A
Temperature range: -5°C... +35°C
Spindle headstock:
-Diameter: 240 mm
-Spindle bore: 100 mm
-Inner taper: 1:10 mm
Number of faceplate revs: 13
Range for every level of faceplate revs: 315
-Level of rev numbers 1: 0,9 - 280 rpm
-Level of rev numbers 2: 1,12 - 355 rpm

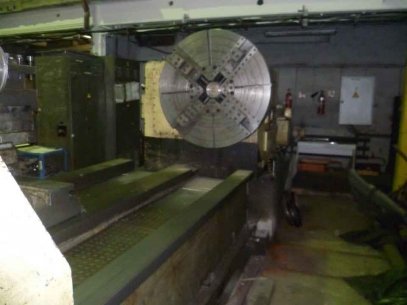

Faceplate:
External diameter: 1000 mm
Min clamping diameter:
-At external fastening: 180 mm
-At internal fastening: 400 mm
Min clamping diameter:
-At external fastening: 780 mm
-At internal fastening: 1000 mm
Number of feeds not depending on the revolution amount: 18
-Feeds range: 0,5 - 180 mm/min
-Rapid feeding: 5000 mm/min
Number of feeds depending on the revolution amount: 24
-Feeds range: 0,0056 - 16 mm/rev
-Rapid feeding: 5000 mm/min

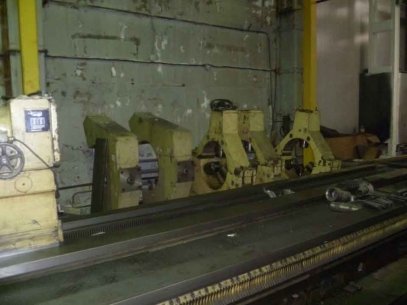

Tailstock:
Sleeve:
-Diameter: 220 mm
-Stroke: 210 mm
Side travel of the upper part: 25 mm
Max work-piece weight by installing between centers: 10000 kg
