Stock-No. 1106-DR235

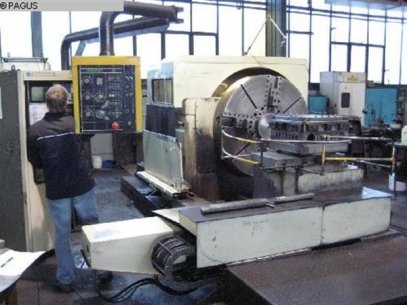

Type of machine Facing Lathe
Make NILES
Type DP1-CNC 6001P
Year of manufacture 1981
Type of control CNC
Storage location Pagus NL. Jena Germany
Country of origin Germany
Specifications:
Technical details
faceplate diameter 1250 mm
turning diameter over slide rest mm
turning length mm
Height of centres ü. Fundament 1250 mm
greates pass round over bed 1400 mm
swing diameter over bed slide 1200 mm
max. torque on the faceplate 25 000 Nm
control CNC -Bahnensteuerung
main spindle speeds: 1 - 450 min-1
hand operated chuck Ø 1250 mm
power chuck LK 1200
bed slide weg 1050 mm
cross slide - travel 950 mm
swing diameter over bed slide 1200 mm
feed range 1,0 - 1000 mm/min
total power requirement 55 kW
weight of the machine ca. 16 t
dimensions of the machine ca. m
