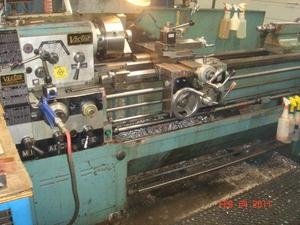

Model: 1660
Swing over bed ways: 16 1/8”
Swing over cross slide: 10 ¼’
Swing over removable gap: 23”
Hole thru spindle: 2 1/32”
Spindle nose: D1-6” camlock
Spindle speeds: 65 to 1800 rpm
Distance between centers: 60”
English threads: 4 to 56 tpi
Metric threads: .25 to 6 mm
Tailstock taper: #4 MT
Tail stock quill travel: 4 11/16”
Dimensions: 2500 lbs. x 105” x 37” x 62” H
EQUIPPED WITH:
10” 3-jaw chuck
13” 4-jaw chuck
Chuck jaws
Steady rest
Collet closure
Collets
Aloris Tool post with holders
Rear splash guard
Foot and hand brake
Sony DRO’s
