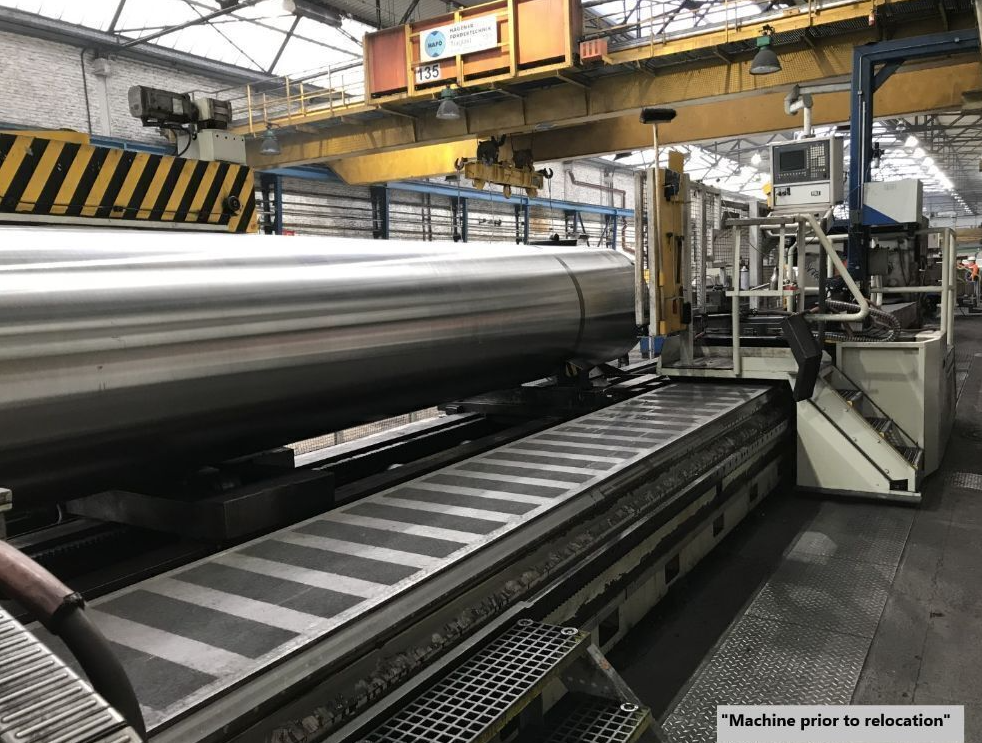

CNC lathe
IRLE - IWDS 1000 CNC
MACH-ID 7758
Double carriage with 4 position revolver and 840D Siemens
Steady rest 200 - 1090 mm
Roller   rest 860 - 1090 mm
4 chuck 1350 mm
Clamping from 200 - 1100 mm
Bed width 2000 mm
Stoke X Axis 950 mm
Stroke Z Axis 14900 mm


Swing over bed Ø: 1400mm
Swing over cross slide Ø:1100mm
DBC Turning Length: 13000mm
Spindle power: 129kW
Workpiece weight: 20000
Speeds / ranges: 1 - 300Rpm
Feed rate X-Axis: 4500mm/min.
Feed rate Z-Axis: 4500mm/min.
Length: 20000mm
Width: 3380mm
Height: 2200mm
Weight: 100000kg
