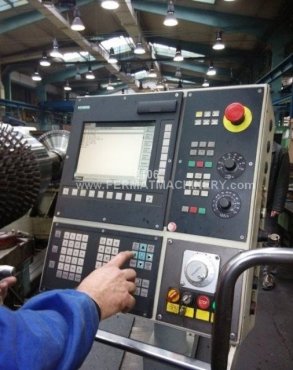

The machine is in good technical condition possibile to test on power. System
Siemens 802 D.
VISIT ALSO OUR YOUTUBE CHANNEL FERMAT USED MACHINERY FOR MORE USED MACHINES VIDEOS
Specifications:
Product number: 151245
Producer: Skoda Plzen
Year manufacture: 1982
Year overhaul: SO 2005

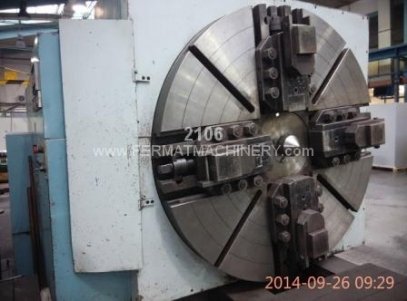

Turn table diameter ... 1620 mm
Turning lenght ... 6000 mm
Swing over cross slide ... 1250 mm
Max. weight of workpiece ... 40000 kg
Max. torque of face plate ... 125000 Nm
Spindle speed fluently in four stages ... 0,45 - 224 min-1
Max. diameter of workpiece ... 1250 mm
Spindle diameter in front bearing ... 450 mm
Diameter taper ... 120 mm
length motion cross-slide ... 500 mm
Section ... 80x80 mm
electric motor for driving the spindle ... 50 kW
length motion cross slide ... 760 mm
length motion of the blade slide ... 100 mm
electromotor for displacements ... 4,2 kW
diameter tailstock quill ... 360 mm
diameter of the cone in Pinole ... 100 mm
quill movement ... 250 mm
through diameter supports ... 200 - 800 mm
carrying capacity supports ... 200000 N
dimensions of the machine for 6 meters distance between centers ... 3155 x 13360 mm
Weight ... 52000 Kg
