TECHNICAL DETAILS

Centres height : 210 [mm]
Distance between centres : 1 000 [mm]
Maxi diameter over slide : 268 [mm]
Maxi diameter in the ramp : 580 [mm]
Spindle boring : 57 [mm]
Spindle speed : 38-2000 [rpm]
Tail stock sleeve diameter : 68 [mm]
Tail stock type : MORSE 5
Sleeve stroke : 200 [mm]
Motor power : 10 [CV]
Dimensions : 2700 x 1400 x 1400 [mm]
Weight : 2300 [kg]

EQUIPMENT

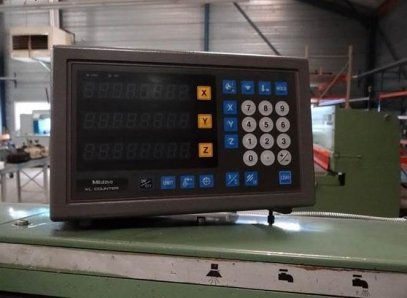

Display 2 axis

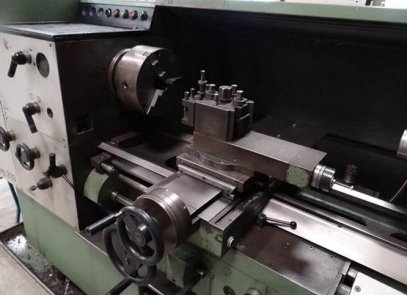

3 jaws chuck : Ø 210 [mm]
Plate : Ø 210 [mm]
1 rest 3 keys
1 rest to follow 2 keys
Lubrication tank with pump
Various tool-holders

Excellent condition.
