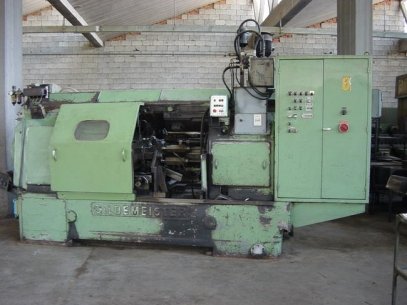

Automatic multispindle lathe

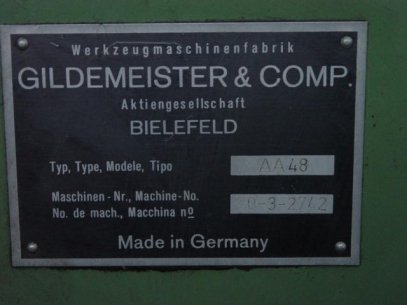

Make Gildemeister
Type AA48
Specifications:
Ready for operation / In good condition
Number of spindles: 8
Capacity round bar: 48 mm
Capacity square bar: 34 mm
Capacity hexagon bar: 42 mm
Max. advance of bar: 220 mm
Max. turning length: 150 mm
Max. stroke of long slide: 175 mm
Number of tools: 16
Spindle speeds:
number (steps): 17
from 180 rpm
up to 2120 rpm
Production time: 10-470 s.
Voltage 50 Hz 3x 380 Volt
Power 18.5 kW
Machine's weight about 13900 kg
Overall dimensions machine:
Length: 4060 mm
Width: 1500 mm
Size seaworthy:22 mc.
Various accessories.
