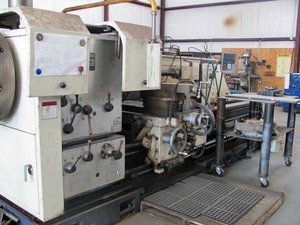

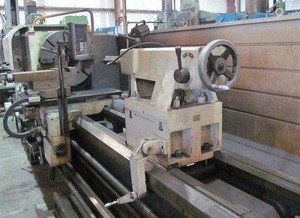

SUMMIT MODEL 42-12 41" X 120"CC 12" HOLLOW SPINDLE ENGINE LATHE

PRELIMINARY SPECIFICATIONS - SUBJECT TO VERIFICATION:
AGE (APPROXIMATE) .............................. 2010

SWING OVER BED: 41.7"
SWING OVER CROSS SLIDE: 29.5"
SWING IN GAP: 63.4"
HOLE THRU SPINDLE: 12.2"
SPINDLE SPEEDS: 4-300 RPM
SPINDLE NOSE: A2-20
THREADS PER INCH: ENGLISH (48) 1-15 TPI
METRIC THREADS: (48) 2-30 MT
TAILSTOCK QUILL TRAVEL: 11.8"
DIAMETER FOF TAILSTOCK QUILL: 4.9"
TAILSTOCK CENTER: #6MT
WIDTH OF BED: 22"
MAIN MOTOR: 30 HP

EQUIPPED WITH:

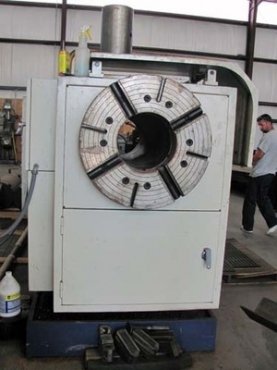

FRONT & REAR CHUCKS
FAGOR/NEWELL 2-AXIS DIGITAL READOUT
TAPER ATTACHMENT
FOLLOW REST

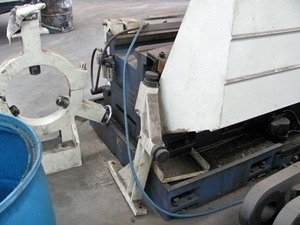

STEADY REST
COOLANT THRU DRILLING ATTACHMENT

DIMENSIONS (APPROXIMATE) L-R x F-B x H ........ 213" X 63" X 93'H
WEIGHT (APPROXIMATE) .......................... 20,790 LBS.

SUBJECT TO PRIOR SALE, AS-IS, F.O.B. TEXAS

213" X 63" X 93"H

20,790 lbs
