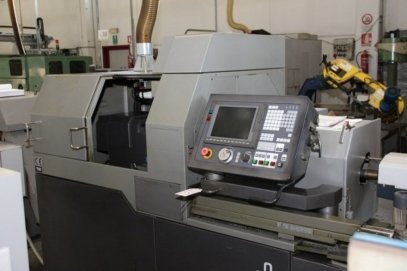

The lathe cnc sliding head has a RECHARGE of 200 mm, the main spindle has a 20 mm diameter machining, the spindle speed is of 200 to 10.000 m / min, the spindle has an indexing axis C of 0.001 °, the motor output (built-in motor ) is 2.2 / 3.7 Kw. The counter has a maximum of 20 mm of diameter machining, the spindle speed is of 200 to 8.000 m / min, while the engine power is of 0.75 / 1.5 Kw.
rotating holder in vertical speed from 200 to 4.500 m / min, motor output (AC servo motor) 1.0 kW, number of driven tools 6, Number 5 turning tools, tool / section (16x12x130) 1 drilling tools (front) [number] 3 (2 rotary), drilling tools (rear) [number] 3 (3 rotary), Pliers and guide bush Collet main spindle / 145E sub-spindle.
