The lathe has a CNC Fanuc 32i-model A, the maximum diameter Ø 620 mm, the maximum is Rotary cutting diameter is Ø 430 mm. Maximum cutting length is 400 mm. A2-8 spindle nose, speed is of 3,000 rpm, total 8 tools.
Technical specifications

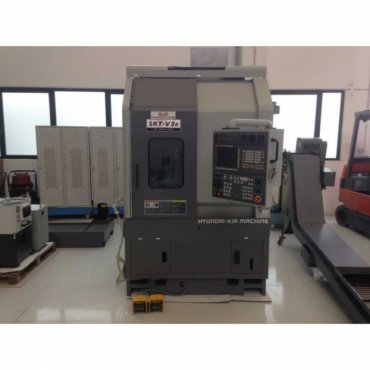

Make and model HYUNDAI WIA SKT-V3R
Year built 2011
Spindle nose A2-8
3000 rpm
Turning diameter 430 mm (620 mm)
Turning length 400 mm

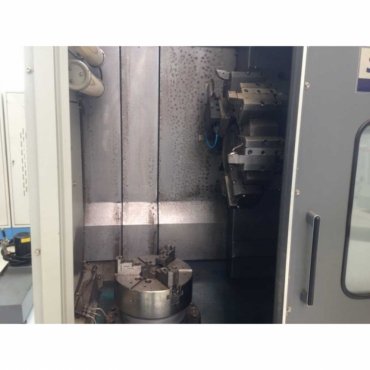

Hydraulic Chuck or hydraulic mechanic
Number of mandrels 1

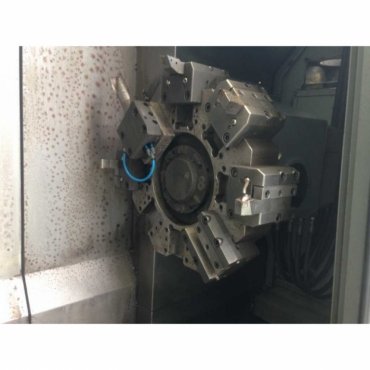

Number 1 Towers

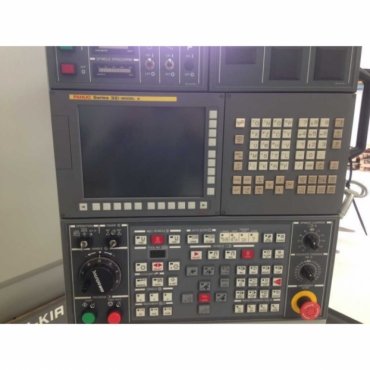

32 the fanuc Cnc model
Tools number 8
Number of controlled axis 2
