MOTOR POWER CHUCK (DRIVEN): 7.5 KW X 2
Spindle speed: 45 to 4500 RPM
NUMBER OF STATIONS IN TOWER: 15 X 2
SELF DIAMETER: 210
NOSE CHUCK ASA: ASA 5 "

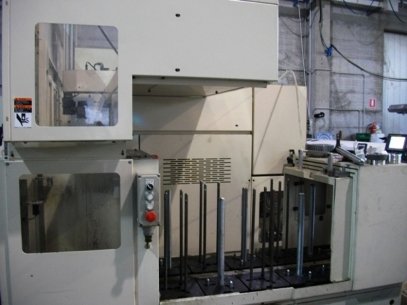

TURNING LOADED GANTRY WITH 14 PALLET
CYCLE MINIMUM OF THE PORTAL: 44 SEC. / 2 PZ.
SIZE PIECE: DIAMETER 120 mm x 100 mm L
PIECE WEIGHT: 5.0 KG X 2
MACHINE WEIGHT: 5500 KG
