LATHE WITH GANTRY LOADER MORI SE, Mod. SL 250B/500, OTHER, LATHES
  • Condition:Used
  • Category:LATHES
  • Type:OTHER
  • Manufacturer:LATHE WITH GANTRY LOADER MORI SE
  • Model:Mod. SL 250B/500
  • YOM:1999
  • Location:Italy, Bergamo
  • Price:-
  • Stock No:-
  • Control:CNC
  • ID:AS26205
Description:

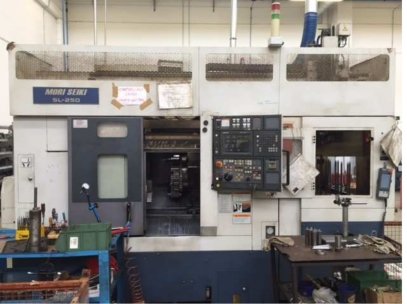

Slant bed cnc lathe
Year built: 1999
CNC control unit MSD 518
Field of work
Maximum workable Diameter 73 mm bar.
Workable Diameter 390 mm max.
Workable length 485 mm max.
Rotary Diameter 680 mm max.
Weight with chip conveyor Kg. 4500
Rapid feeds X, Z 18/24 m/min.
Spindle
Spindle bore mm 86
ASA 8 spindle nose attack "spindle speed rpm 35-3500
Chuck diameter 250 mm

Tailstock
Quill stroke 120 mm manual
Steerer tube diameter 85 mm
Contropun ta Body stroke mm. 515
Morse taper sleeve # 5
Engines

Main motor power 30 min/cont. kW 20/15

Supplied accessories

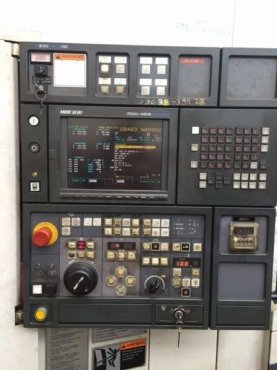

10.4 "color monitor,
hydraulic Chuck diam. 250 mm,

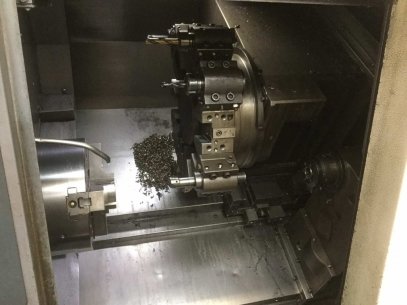

10 disc turret positions,
chip conveyor rear,
removable tool setter
static tool series
loading/unloading robot type gantry Loader with 3-jaw for flange pulse

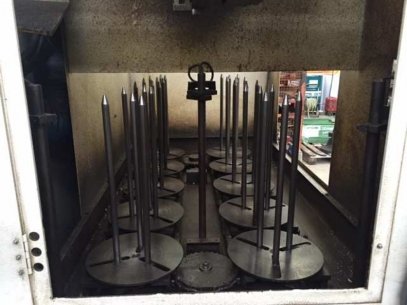

rotating pallet storage warehouse with 10 pieces
Technical specifications
MORI SEIKI brand and model Mod. SL 250B/500
Year built 1999
ASA 8 spindle nose
73 bar passage
3500 RPM
Turning diameter 390
Turning length 485
Chuck diameter 250
Hydraulic Chuck or hydraulic mechanic
Number of mandrels 1
Number 1 Towers
Cnc CNC control unit model MSD 518
Number of Gantry Loader 1
Number of Warehouses 10 Pieces
