maximum diameter 45 mm bar
Maximum rotating bench mm 420
spindle axis 0001 ° C
with gantry axes XYZ

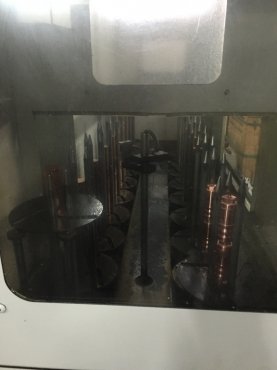

loading stations n positions. 22
# 5 brings individual tools for external turning framework 20
# 4 brings individual tools TURNING FRONT PANEL 20
# 14 brings short tools for boring bars for internal turning hole Ø32
# 5 brings long tools for boring bars for internal turning hole Ø32
# 4 axial motor for milling and drilling with front caliper R16
# 5 radial motorized for milling and drilling on the outer diameter gripper R16
N ° 1 for motorized swivel angle clamp R16 milling

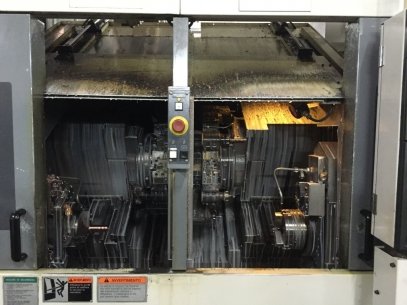

The two turrets with 12 tools can be mounted under 25. All positions can be mounted motorized
