2006
Swing diameter max 330 mm Max turning length 510 mm
X axis travel 250 mm Y-axis travel 100 mm (+/- 50 mm) Z-axis travel 580 mm
Swing diameter max bar 65 m
Chuck ASA A2-6
Spindle motor power 11/15 kW max spindle speed from 45 to 4500 RPM
Counter ASA A2-5 Diameter max bar counter Swing in 34 mm
Spindle motor power 5.5 / 7.5 kW Max counter 60 to 6,000 RPM
Indexing axis 0.001 ° C

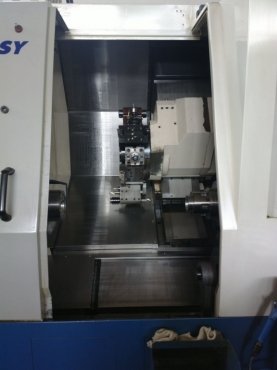

Bidirectional automatic motorized turret 12 positions

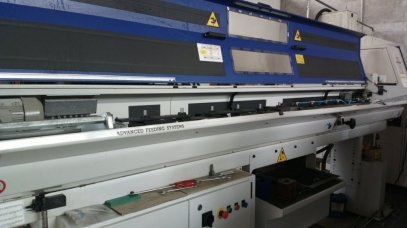

Bar loader Iemca Master 880 MP
Presetting evacuator chips Refrigeration High pressure 6 bar
