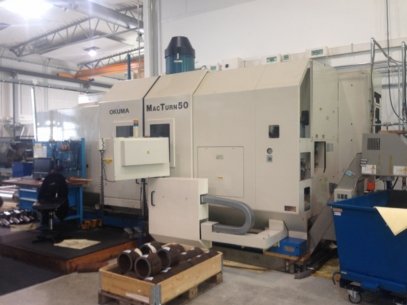

Lathe Okuma Macturn 50 x 1500
Y.o.M. 2001

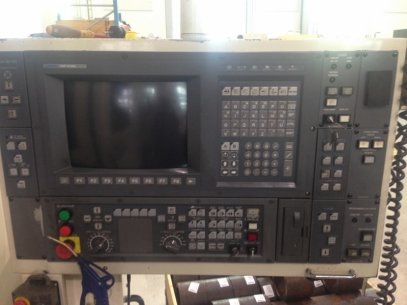

CNC OSP-U100L
Machine specifications
Between centers 1500mm
Swing over bed Dia610mm
Swing over carrige Dia 580mm
Max machining dia Dia 580mm
Max work length 1500mm
Travels X-axis 598mm
Travels Z-axis 1660mm
Travels Y-axis 230mm (+110_-120)
Travels C-axis 360°(0,001° increment)
Travels B-axis 1° (360°)
Spindle speed 14-3200 rpm/min
Speed range 2 auto range
Spindle nose JIS A2-8
Tapered bore Dia 90 mm
Bearing dia Dia 130mm
M-spindle speed range 40-3000 rpm/min
Rapid traverse x 12m y 12m z20 m/min c100 rpm/min
Tool shank MAS BT50
Magazine capacity 50-tools
Max tool dia Dia 130mm
Max tool length 350 mm
Max tool mass 20kg
Tool selection Random
Tailstock quill Dia 120mm
Tailstock quill tapered bore MT No:5
Tailstock quill travel 170mm
Spindle motor 30/22 kw
M-tool motor 11/7,5 kw
