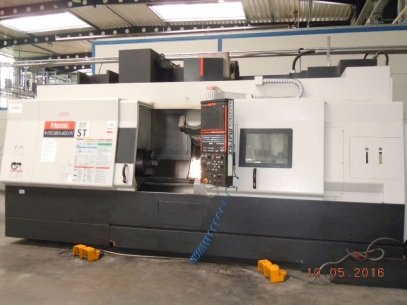

The lathe multitasking mazak It has a swing over 850 mm bench, a swing over carriage 660 mm and a maximum turning diameter of 760 mm with turret sup. The maximum turning diameter of 420 mm with inf turret and a maximum turning length of 1500 mm. The left main spindle has a maximum rotational speed of 3,300 rpm and a spindle power (30 min) 30.0 kW.

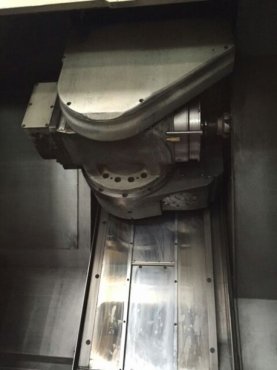

According to the spindle dx has a maximum speed of rotation of 4,000 min-¹e an engine power output of (30 min) 26.0 kW. The milling spindle has a maximum speed of 12,000 rpm milling rotation with iso attack 40. The turret inf stations turret 12 positions with tool size to turning / bore 25x25 / 32 mm diam. Maximum swing over bed of 850 mm and a maximum of 660 mm swing over carriage.
