Machine 2003
funzionamte in all its parts (on sale for closure activities)
Control ECS 2402
center height 450 mm
distance between centers 5000 mm useful
Diameter 485 mm swing over slide
105 mm spindle bore
spindle power 28/35 kW
Maximum speed: 2,200 r / min
Spindle nose: A2-8
Self-centering hydraulic control type 315 BHD

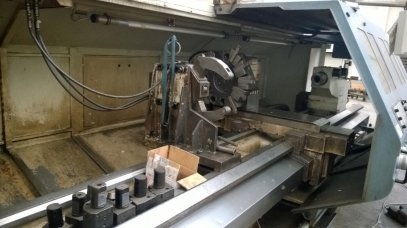

Electromechanical rear turret baruffaldi 250/12 VDI50
Self-centering hydraulic steady rest until d.236 mm

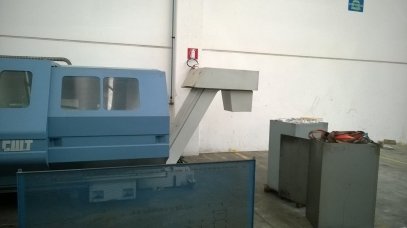

chip conveyor longitudinal
tailstock with automatic locks automatic cycle
