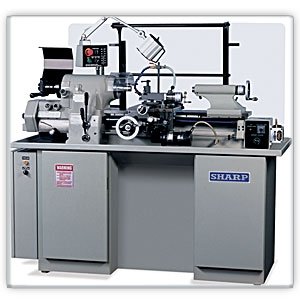

HIGH PRECISION TOOL ROOM LATHE -
MODEL 1118H

CAPACITY
Swing over bed 11"
Swing over carriage 9"
Swing over cross slide 6"
Distance between centers 18"
SPINDLE
With round 5C collets 1 1/16"
With hexagon 5C collets 7/8"
With square 5C collets 3/4"
With expanding chucks 3"
With step chucks 1 1/16-6"
With jaw chucks 5"
Spindle speed range (infinitely variable DVS) 130-4,000 rpm
Spindle nose taper (inside) 5C (10º)
Spindle nose taper (outside) 4º
TRAVEL AND FEED RANGE
Cross slide travel 6"
Compound slide travel 3"
Quick-action compound slide travel 0.1"
Carriage power feed range 5/16-7"
Cross slide power feed range 4/16-4"
THEADING
Leadscrew pitch, diameter 8 tpi, 1"
Inch threads (36) 11-108
Metric threads (36) 0.275 - 2.7
TAILSTOCK
Tailstock spindle diameter 1.358"
Tailstock spindle taper MT #2
Tailstock spindle travel 3.75"
GENERAL
Main motor 5 HP, 3 phase or single phase
Coolant pump motor 0.25 hp
Feed motor (DC) 75 watt, 110 volt
Weight (approx) 2,300 lbs
