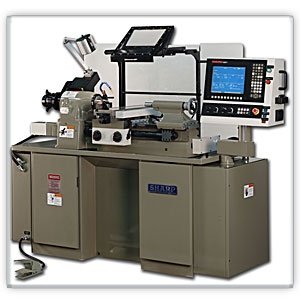

CAPACITY
Swing over bed 14.5"
Swing over carriage 12.37”
Swing over cross slide 6”
Tool Height 1/2"
Tooling Plate Size 7.5" x 12" (7.5"x15" opt.)
Maximum X-Axis Travel 9" (12" opt.)
Maximum Z-Axis Travel 5" (8" opt.)
Feed Rate 200 ipm
Rapid Traverse 500 ipm
Carriage Base Movement (Manual) 13.4"
Drive System (X & Z Axis) AC Servo Drive
Linear Guideway System 25mm by NSK
Ballscrews 20 mm (3/4"), C3 Precision Ground
SPINDLE
Spindle Speed Range (Programmable) 100-4,000 rpm
Spindle Through Hole 1-1/16"
Spindle Collet, Chuck 5C, (6" chuck opt.)
Spindle Motor 5HP
Accuracy
Positioning +/- 0.00008"
Repeatability +/- 0.00004"
Spindle TIR 0.00005"
CNC CONTROL
Anilam Model 4200T PC based, with 12.1" TFT active matrix screen, 8GB hard-disk, 8MB ram, 3.5" floppy drive, Conversational or G-code programming.
GENERAL
Electricity 220v, 60hz, 3 phase (440v opt.)
Coolant Pump Motor 0.25 HP
Net Weight (approx) 2,700 lbs
