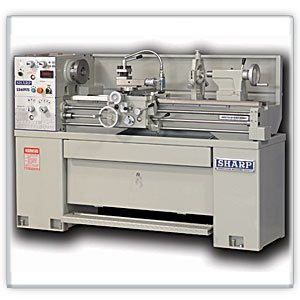

GEARED HEAD PRECISION LATHE - 1440V

CAPACITY
Swing over bed 13" 14"
Swing over cross slide 8 5/16" 8 5/8"
Swing over gap 18-1/2" 20"
Width of bed 7 1/2" 8 1/2 "
Distance between centers 40" 40"
HEADSTOCK
Spindle nose type D1-4 cam lock D1-4 cam lock
Spindle bore 1-9/16" 1 1/2"
Spindle speeds 40 - 2,000 rpm [vari] 45 - 1,800 rpm [16] / 30-2200 rpm [variable]
Taper of spindle bore MT #5 MT #5
THREADS AND FEEDS
longitudinal feeds - in / rev [40] 0.0016 - 0.046" 0.0012 - 0.029"
Cross feed - in /rev [40] 0.0005 - 0.015" 0.0003 - 0.01"
Inch threads [TPI] 2 - 56 (39) 4 - 112 (40)
Metric threads [mm] 0.5 – 12(42) 0.45 - 7.5mm
Lead screw (pitch, diameter) 8 tpi, 1" 8 tpi, 7/8"
CARRIAGE
Saddle width 12" 13-1/4"
Apron width 11" 11"
Cross slide width 4.5" 6-3/4"
Cross slide travel 6 3/4" 7"
Compound rest travel 3 1/2" 4"
Compound width x length 3 x 7-1/2" 3-1/2 x 8-1/2"
BED
Bed length 64" 66"
Bed width 7 1/2" 8 1/2"
TAILSTOCK
Quill travel (graduated) 4 " 4 1/2"
Quill diameter 1 9/16 1 3/4"
Quill taper MT #3 MT #3
GENERAL
Spindle motor 3 HP 3 HP
Motor electric phase single or 3 phase 3 phase/single or 3 phase
Net weight (approx.) 1,550 LBS 1,650 LBS
