Description:
FEATURES:
Headstock gears are made of CR-MO alloy steel
Hardened and ground spindles and gears in headstock
Hardened and ground bed ways
Telescopic cross slide
Cross slide ways are ground
Dual inch/metric gearbox
Oil bath lubrication for headstock, gearbox, and apron
Rigid one piece cast iron base
Jog button for easy spindle speed changes
Full length foot brake
MACHINE INCLUDES:
6" 3-jaw chuck
8" 4-jaw chuck
Steady rest
Follow rest
4-way tool post
Face plate
Full length splash guard
Halogen work light
Chuck cover with limit switch
Specifications:
A. MACHINE

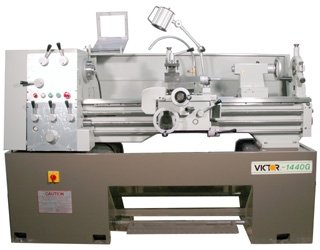

Model(s): 1440G Precision High Speed Lathe
B. CAPACITY
01) Swing over bed: 14”
02) Swing over cross slide: '9 ”
03) Swing over gap: 21”
04) Bed width: 10”
05) Distance between centers: 39.4”
C. HEADSTOCK
06) Spindle bore diameter: 1-9/16”
07) Spindle bore taper: M.T. #5
08) Taper of center in sleeve: M.T. #3
09) Spindle nose: D1-4
10) Number of spindle speeds: 16 Steps
11) Range of spindle speeds (rpm): 42 ~ 2,000 rpm
12) Speed selections: 42, 70, 85, 115, 140, 182, 230, 237, 365, 385, 475, 635, 770, 1000, 1270, 2000
D. THREADS & FEEDS
13) Range of longitudinal feeds: 0.002” ~ 0.04”/rev.
14) Range of cross feeds: 0.001” ~ 0.02”/rev.
15) Inch threads: 4 ~ 112 TPI x 40 kinds
16) Metric threads: 0.25 ~ 6.0 mm x 22 kinds
E. CARRIAGE
17) Cross slide travel: 8-1/16”
18) Compound slide travel: 3-3/4”
F. TAILSTOCK
19) Tailstock taper center: M.T. #3
20) Tailstock quill travel: 4-1/4”
G. POWER
21) Main motor: '3 HP 3 Phase
22) Coolant pump: 1/8 HP
H. WEIGHT & DIMENSIONS
23) Shipping dimensions (LxWxH): 78”x30”x60”
24) Gross weight: 2,794 lb.
