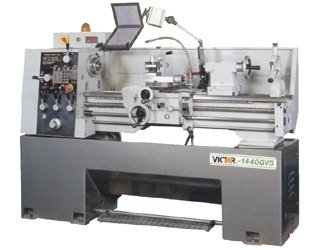

High-speed precision variable speed lathe combines with rigid one-piece cast iron base design and Meehanite casting bed to provide outstanding machining performance.
Specifications:
A. MACHINE
Model(s): 1440GVS Precision Variable High Speed Lathe
B. CAPACITY
01) Swing over bed: 14”
02) Swing over cross slide: '9 ”
03) Swing over gap: 21”
04) Bed width: 10”
05) Distance between centers: 39.4”
C. HEADSTOCK
06) Spindle bore diameter: 1-9/16”
07) Spindle bore taper: M.T. #5
08) Taper of center in sleeve: M.T. #3
09) Spindle nose: D1-4
10) Number of spindle speeds: Variable - 2 steps (Inverter control)
11) Range of spindle speeds (rpm): Low gear: 30 ~ 360 rpm / High gear: 160 ~ 2,500 rpm
12) Speed selections: Infinitely Variable
D. THREADS & FEEDS
13) Range of longitudinal feeds: 0.002” ~ 0.04”/rev.
14) Range of cross feeds: 0.001” ~ 0.02”/rev.
15) Inch threads: 4 ~ 112 TPI x 40 kinds
16) Metric threads: 0.25 ~ 6.0 mm x 22 kinds
E. CARRIAGE
17) Cross slide travel: 8-1/16”
18) Compound slide travel: 3-3/4”
F. TAILSTOCK
19) Tailstock taper center: M.T. #3
20) Tailstock quill travel: 4-1/4”
G. POWER
21) Main motor: '3 HP 3 Ph.
22) Coolant pump: 1/8 HP
H. WEIGHT & DIMENSIONS
23) Shipping dimensions (LxWxH): 78”x30”x60”
24) Gross weight: 2,794 lb.
