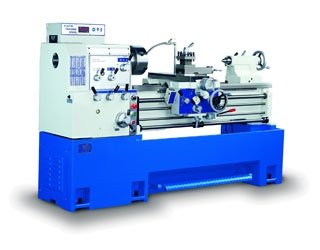

Precision built electronic variable speed lathe combines accuracy, ease of use, rigidity and large 3.07" hole thru spindle for most demanding applications. Thermal treated Meehanite cast bed and one-piece base provide superior durability and reliability.

A. MACHINE
Model(s): S1740EVS / S1760EVS / S1780EVS Precision Variable Speed Lathe
B. CAPACITY
01) Swing over bed: 17”
02) Swing over cross slide: '9.45”
03) Swing over gap: 25.59”
04) Bed width: 11.81”
05) Distance between centers: 39.37” / 59” / 78.74”
C. HEADSTOCK
06) Spindle bore diameter: 3.07”
07) Spindle bore taper: M.T. #7
08) Taper of center in sleeve: M.T. #4
09) Spindle nose: D1-8
10) Number of spindle speeds: Variable - 2 ranges (Inverter control)
11) Range of spindle speeds (rpm): 20 ~ 2,000 rpm
12) Speed selections: Low gear: 20 ~ 180 rpm / High gear: 180 ~ 2,000 rpm
D. THREADS & FEEDS
13) Range of longitudinal feeds: 0.002” ~ 0.03”/rev.
14) Range of cross feeds: 0.0008” ~ 0.011”/rev.
15) Inch threads: 4 ~ 56 TPI x 36 kinds
16) Metric threads: 0.5 ~ 7 mm x 17 kinds
E. CARRIAGE
17) Cross slide travel: 9.65”
18) Compound slide travel: 4.92”
F. TAILSTOCK
19) Tailstock taper center: M.T. #4
20) Tailstock quill travel: 5.91”
G. POWER
21) Main motor: '7.5 HP 3 Phase
22) Coolant pump: 1/8 HP
H. WEIGHT & DIMENSIONS
23) Shipping dimensions (LxWxH): 90”x38”x64” / 110”x38”x64” / 133”x38”x64”
24) Gross weight: 4,100 lb. / 4,850 lb. / 5,450 lb.
