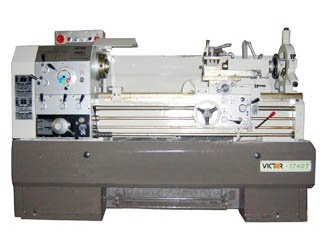

High performance lathe with 17" swing over bed and option up to 80" between centers. Lathe is built to last with high quality construction for most demanding applications.
Specifications:
A. MACHINE
Model(s): 1740T / 1760T / 1780T Precision Heavy-Duty Lathe
B. CAPACITY
01) Swing over bed: 17”
02) Swing over cross slide: '9-5/8”
03) Swing over gap: 26 ”
04) Bed width: 11-3/4”
05) Distance between centers: 40” / 60” / 80”
C. HEADSTOCK
06) Spindle bore diameter: 2-5/16”
07) Spindle bore taper: M.T. #6
08) Taper of center in sleeve: M.T. #4
09) Spindle nose: D1-6
10) Number of spindle speeds: 12 Steps
11) Range of spindle speeds (rpm): 50 ~ 1,800 rpm
12) Speed selections: 50, 72, 101, 147, 175, 253, 355, 515, 612, 885, 1239, 1800
D. THREADS & FEEDS
13) Range of longitudinal feeds: 0.002” ~ 0.028”/rev.
14) Range of cross feeds: 0.001” ~ 0.014”/rev.
15) Inch threads: 4 ~ 56 TPI x 36 kinds
16) Metric threads: 0.5 ~ 7 mm x 22 kinds
E. CARRIAGE
17) Cross slide travel: 8-5/8”
18) Compound slide travel: 7”
F. TAILSTOCK
19) Tailstock taper center: M.T. #4
20) Tailstock quill travel: 6”
G. POWER
21) Main motor: '7.5 HP 3 Phase
22) Coolant pump: 1/8 HP
H. WEIGHT & DIMENSIONS
23) Shipping dimensions (LxWxH): 88”x38”x65” / 108”x38”x65” / 131”x38”x65”
24) Gross weight: 3,520 lb. / 4,070 lb. / 4,750 lb.
