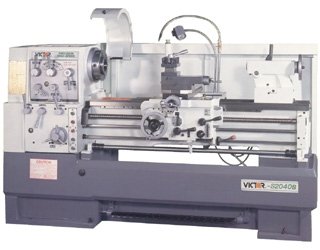

Heavy-duty lathe with large 3-1/8" spindle bore and rigid one piece cast iron base designed with performance in mind for a wide variety of continuous, demanding machining applications.

A. MACHINE
Model(s): S2040B / S2060B Precision Heavy-Duty Lathe
B. CAPACITY
01) Swing over bed: 20”
02) Swing over cross slide: 12-19/32”
03) Swing over gap: 28-29/32”
04) Bed width: 11-7/16”
05) Distance between centers: 40” / 60”
C. HEADSTOCK
06) Spindle bore diameter: 3-1/8”
07) Spindle bore taper: 1 : 20
08) Taper of center in sleeve: M.T. #4
09) Spindle nose: D1-8
10) Number of spindle speeds: 12 Steps
11) Range of spindle speeds (rpm): 15 ~ 1,500 rpm
12) Speed selections: 15, 25, 35, 60, 95, 140, 175, 275, 400, 660, 1050, 1500
D. THREADS & FEEDS
13) Range of longitudinal feeds: 0.002” ~ 0.032”/rev.
14) Range of cross feeds: 0.001” ~ 0.0094”/rev.
15) Inch threads: 2 ~ 56 TPI x 44 kinds
16) Metric threads: 0.5 ~ 14 mm x 24 kinds
E. CARRIAGE
17) Cross slide travel: 9-1/8”
18) Compound slide travel: 5-1/16”
F. TAILSTOCK
19) Tailstock taper center: M.T. #4
20) Tailstock quill travel: 5”
G. POWER
21) Main motor: 10 HP 3 Phase
22) Coolant pump: 1/8 HP
H. WEIGHT & DIMENSIONS
23) Shipping dimensions (LxWxH): 96”x44”x65” / 118”x44”x65”
24) Gross weight: 4,878 lb. / 5,870 lb.
