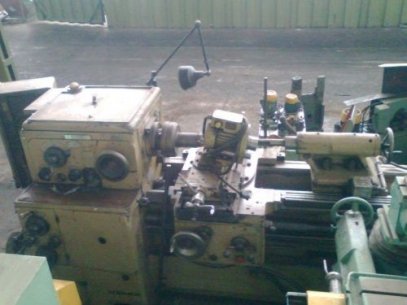

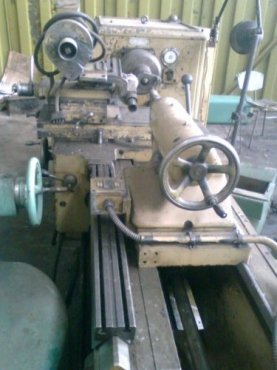

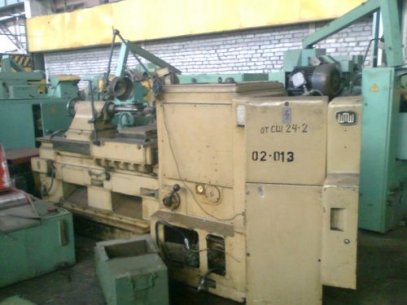

Relieving lathe NILES DH250/III. Made in: Germany.
Specifications:
Centre height of relief turning slide: 150 mm
Centre height over bed: 300 mm
Turning length/centre distance: 630/1000 mm
Relief turning and cross slide swivelling each: 360 degrees
Bore in work spindle: 27 mm
Tool quick draw-back: 40 mm
Relief turning stroke, stepless within 4 steps: 0–32 mm
Spindle speeds, stepless within 4 steps: 1–400 rpm
Draw back speeds, stepless: 2,5–630 rpm
Threads: metric
Main motor: 380V; 50Hz; 9kW
