Make Leifeld PLB1600
Type PLB 1600
Year new 60's

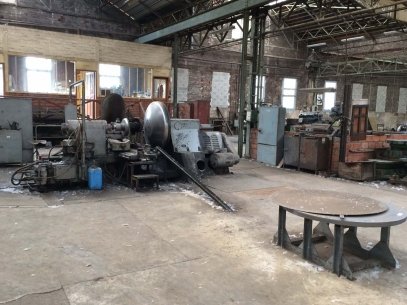

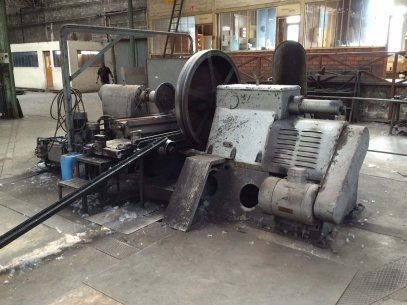

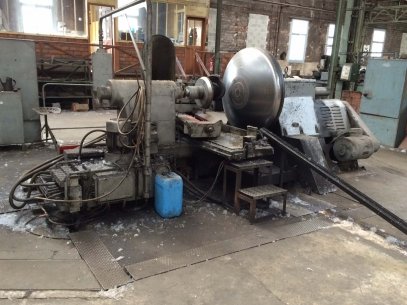

Spinning forming dishing machine
Swing in gap = 3.300
Swing lower bed = 2.400
Centre distance = 2.840
Max. sheet = 6 mm 30 kw / 540 Rpm Hydraulic Heavy/Duty spinning machine: This machine is made up two separate parts which creates a large machining space capable of accommodating blanks up to 3300 mm in diameter. Cross slide and tailstock are hydraulically controlled. The upper bed can also be shifted hydraulically. All functions are easily controlled via control valves from a swivelling pendant control panel. Field of application of the machine: Field off application of the machine; Tank ends, silo tunnels, fume hoods, rocket and prime mover components, large containers and flanged %26 profiled parts for tanks, vessels for the chemical and the aircraft industry.
