For Sale Listings
BOEHRINGER VDF, dus 400 tI, TURNING, LATHES
  • Condition:Used
  • Category:LATHES
  • Type:TURNING
  • Manufacturer:BOEHRINGER VDF
  • Model:dus 400 tI
  • YOM:2012
  • Location:Netherlands, BABBERICH
  • Price:On request
  • Stock No:8763
  • Control:CNC
  • ID:AS29867
Description:

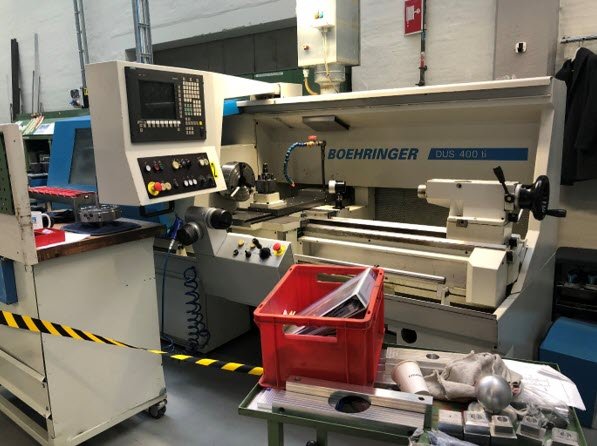

CNC lathe VDF BOEHRINGER - DUS 400 Ti
DUS Turning machine for single workpieces or small batch sizes
Guideways double Vee
Ergonomic designed
Optimal protecion and safety for opperator and enviroment
Parat Tool system
3 Chuck Ø 315 mm
Swing over bed Ø: 420mm
Swing over cross slide Ø:235mm
DBC Turning Length: 1000mm
Spindle bore: 51mm
Spindle power: 11kW
Tailstock spindle Ø: 70Ø
Stroke pinole: 110mm
Spindle taper: 4Mk
Speeds / ranges: 10 - 3000Rpm
Feed rate X-Axis: 5000mm/min.
Feed rate Z-Axis: 10000mm/min.
Length: 3400mm
Width: 2000mm
Height: 2200mm
Weight: 3000kg
Specifications:
CNC lathe VDF BOEHRINGER - DUS 400 Ti
DUS Turning machine for single workpieces or small batch sizes
Guideways double Vee
Ergonomic designed
Optimal protecion and safety for opperator and enviroment
Parat Tool system
3 Chuck Ø 315 mm
Swing over bed Ø: 420mm
Swing over cross slide Ø:235mm
DBC Turning Length: 1000mm
Spindle bore: 51mm
Spindle power: 11kW
Tailstock spindle Ø: 70Ø
Stroke pinole: 110mm
Spindle taper: 4Mk
Speeds / ranges: 10 - 3000Rpm
Feed rate X-Axis: 5000mm/min.
Feed rate Z-Axis: 10000mm/min.
Length: 3400mm
Width: 2000mm
Height: 2200mm
Weight: 3000kg
Dealer name:
Mach4Metal Netherlands, Babberich
