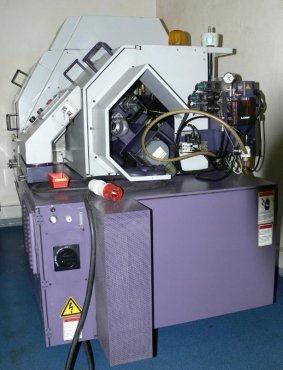

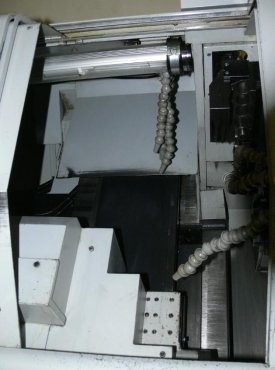

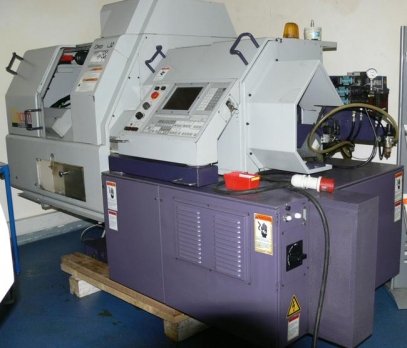

max. machining diameter : Ø 30 mm ( Ø 8 - Ø 25
max. machining length : 250 mm with 1 voltage
max. bore diameter : Ø 12 mm
max. thread bore diameter : : M 10
diameter of spindle through hole : Ø 33 mm
spindle speed : 200 - 8000 U / min
max. bore diameter with rotating tool : Ø 7 mm
max. thread bore diameter with rotating tool: M 6
tool spindle speed : 200 - 5000 U / min
max. clamping diameter for the counter spindle : Ø 32 mm
max. supernatand of a backside machining workpiece : 120 mm
max. bore diameter for backside machining: Ø 10 mm
max. thread bore diameter for backside machining: M 8
counter spindle speed : 200 - 6000 U / min
collet chuck and type of bushs:
spindle collet FC081 - M
guide bushing FG531 - M
chuck ER11, ER16
Type Rego AR11, AR16
counter spindle tong FC081 - M - K
number of tools to be fitted : 17
long lathe tool : 5
rotating tools : 4
drilling tools for front page : 3
drilling tools for back side : 5
tool shank : 16 x 16 x 130 mm
sleeve : Ø 25,4 mm
max. tool diameter for rotating tool holder : Ø 7 mm( ER11,AR11)
Ø mm ( ER16, AR16)
rapid traverse speed : X1 - axis 16 m / min
X2 -, Z1 -, Z2 - axis 18 m / min
Y1 - axis 20 m / min
bar length : 2500 mm
spindle drive motor : 3,7 / 5,5 kW
counter spindle drive : 1,1 / 2,2 kW
required space (depth x wide x height): 1270 x 2785 x 1760 mm
weight: 2600 kg ( 26 kN)

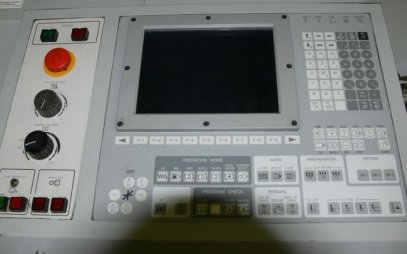

NC - control CITIZEN CINCOM SYSTEM IV C
six controllable axis : X1, X2, Y1, Z1, Z2, and C1
