Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co.,Ltd specializes in the researches, developments, manufactures and sells of metalworking machines: Vertical lathe ,Vertical turning Lathe, Vertical turret lathe ,CNC lathe ,Lathe machine,Heavy duty lathes,Plano miller,Milling machine and boring machine etc.
Single column Vertical Lathe machine model:
C5112/C5116/C5118/C5120/C5123/C5125/C5126
Maximum turning diameter: 1250/1600/1800/2000/2300/2500mm
Maximum height of workpiece: 1000/1000/1000/1200/1300/1350 mm
Maximum weight of workpiece 3.2 / 5 / 5 / 6 / 8 / 10 t
Double column Vertical Lathe machine model:
C5225/C5232/C5240/C5250/C5263
Maximum turning diameter:2500/3150/4000/5000/6300mm
Table diameter : 2500/3150/4000/5000/6300 mm
Our factory video:
https://youtu.be/4xCWym-Fp9k
Specifications:

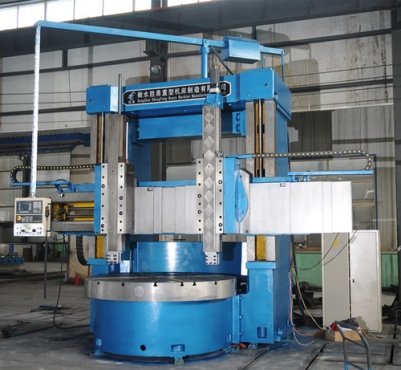

Technical specification of Vertical CNC turning lathe machines C5232
1 Maximum turning diameter 3150 mm
2 Maximum Height of workpiece 1600/2000/2200/2500/3000 mm
3 Maximum Weight of workpiece 10/20 t
4 Table diameter 2830 mm
5 Speed range of table 2-63 r/min
6 Maximum torque 63 KN/min
7 Vertical Travel of tool post 1000/1250 mm
8 Horizontal travel of tool post 1735 mm
9 Rotation angle of tool post ±30° degree
10 Power of main motor 55 kw
11 Machine weight About 36-50 t
