KREWEMA, HDFM 55, TURNING, LATHES

Condition:Used
Category:LATHES
Type:TURNING
Manufacturer:KREWEMA
Model:HDFM 55
YOM:2008
Location:Netherlands, BABBERICH
Price:On request
Stock No:6986

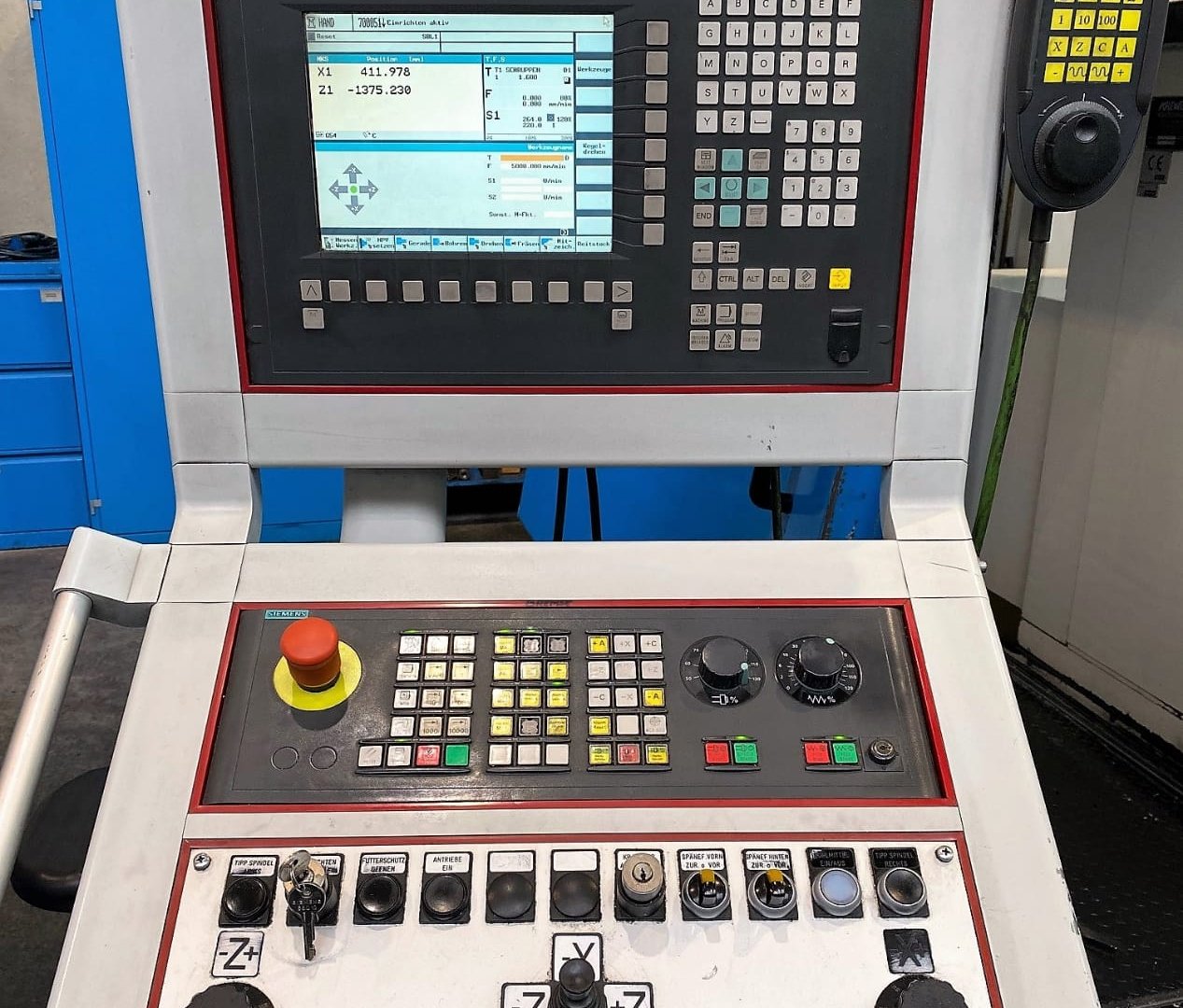

Control:CNC
ID:AS29246

Details in PDF

Send request

Report incorrect information

+ Add to shortlist

Copy offer link

Description:

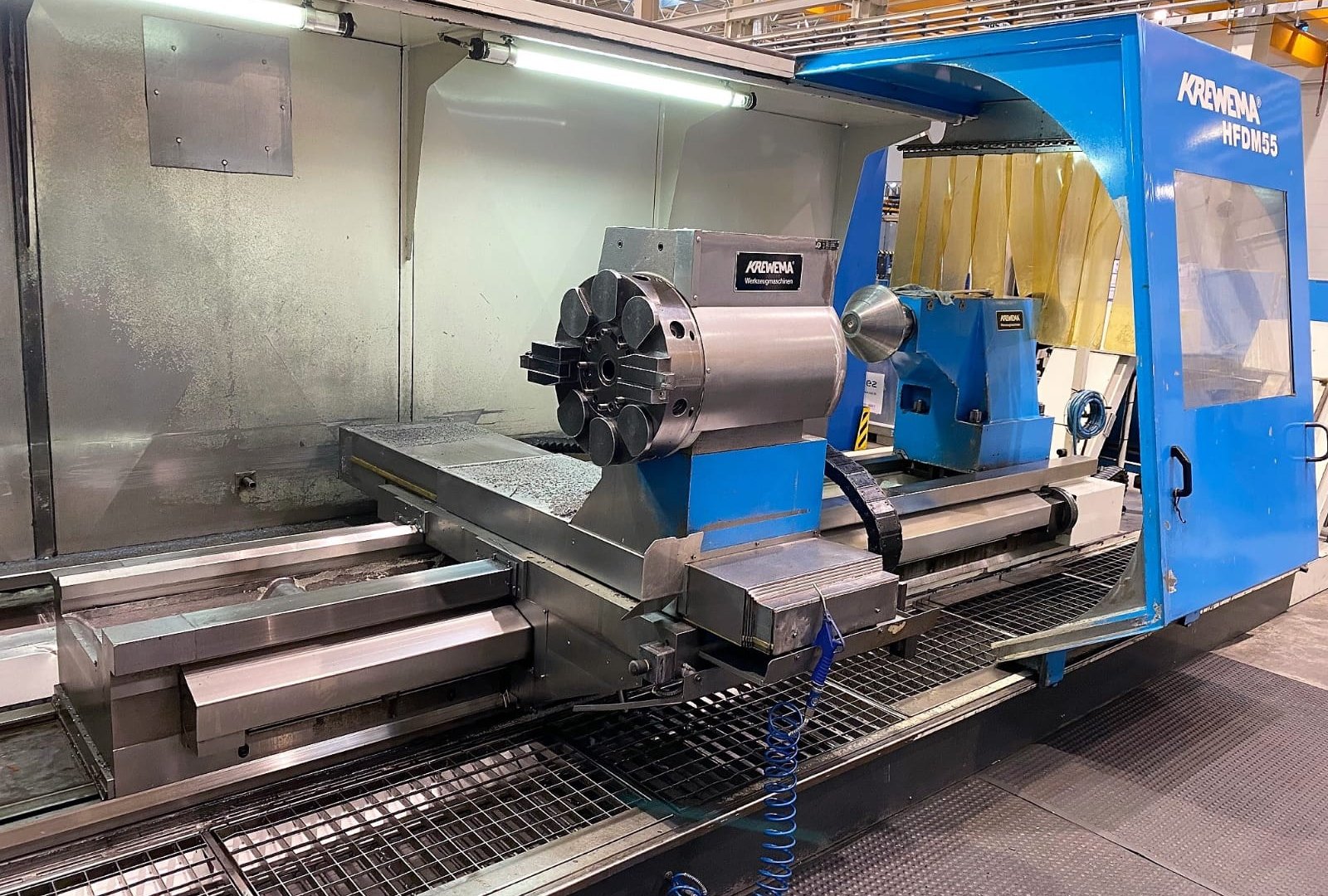

Krewema - HDFM 55 x 3000 CNC Lathe Ø 1420 x 3000 mm C-Axis Live Tools = Mach4metal 6986
4 chuck 1600 mm
4 chuck 900 mm
3 chuck 630 mm ( bore 310)

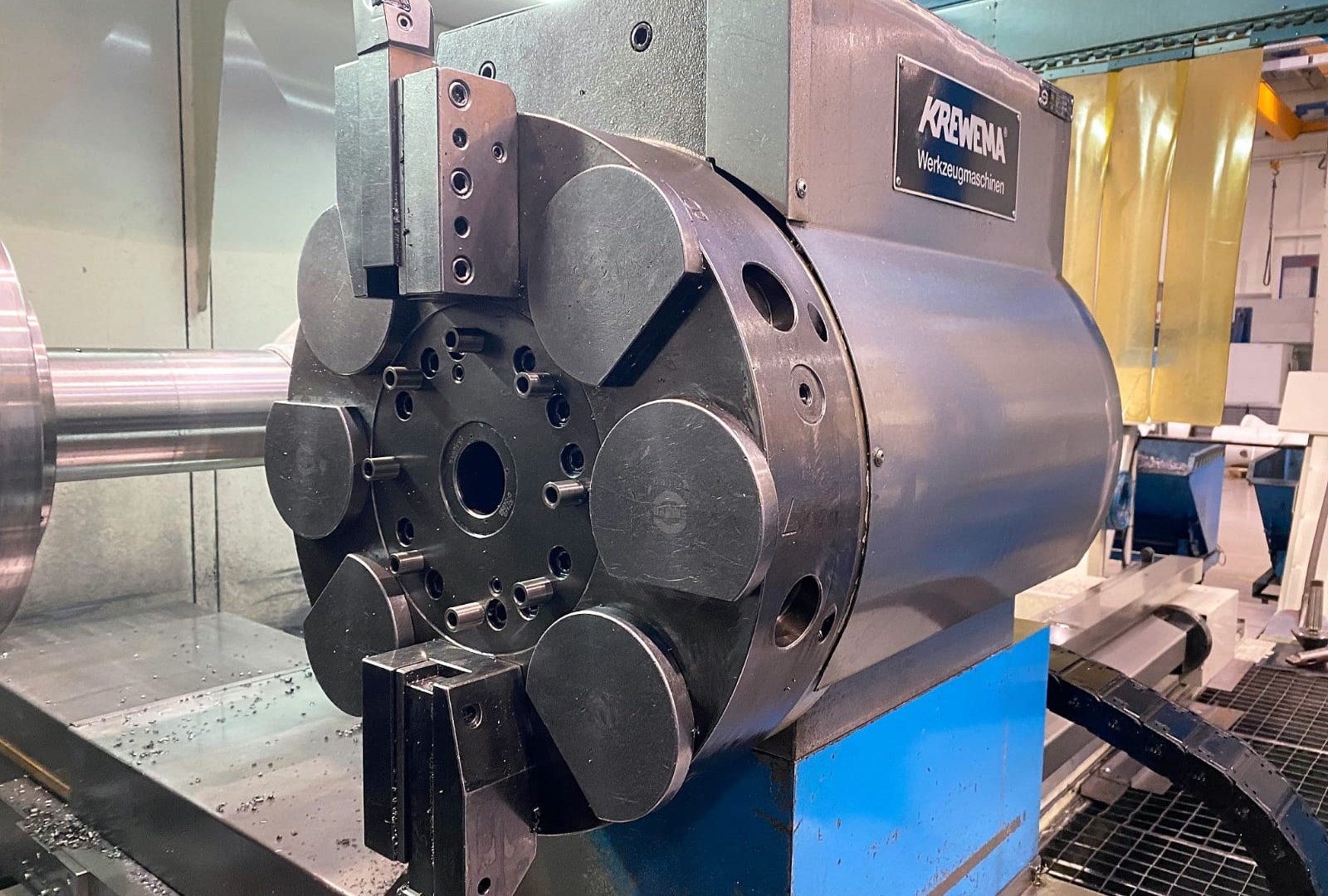

Sauter 8 position revolver
Vdi 60 tool system
Internal coolant tool holder
Radial live tool holder
Axial live tool holder
Chip conveyor
Internal coolant tool holder
Swing over bed Ø: 1.420mm
Swing over cross slide Ø:920mm
Swing in the gap Ø: 2.050mm
DBC Turning Length: 3000/4000 mm
Gap length: 1.000mm
Spindle bore: 155mm
Spindle power: 51kW
Bed width: 750mm
Tailstock spindle Ø: 160Ø
Stroke pinole: 300mm
Spindle taper: MET 80 Mk
Speeds / ranges: 1200Rpm
Feed rate X-Axis: 8.000mm/min.
Feed rate Z-Axis: 6.000mm/min.
Length: 9.000 mm
Width: 3.500 mm
Height: 3.200 mm

Specifications:

Krewema - HDFM 55 x 3000 CNC Lathe Ø 1420 x 3000 mm C-Axis Live Tools = Mach4metal 6986
4 chuck 1600 mm
4 chuck 900 mm
3 chuck 630 mm ( bore 310)
Sauter 8 position revolver
Vdi 60 tool system
Internal coolant tool holder
Radial live tool holder
Axial live tool holder
Chip conveyor
Internal coolant tool holder
Swing over bed Ø: 1.420mm
Swing over cross slide Ø:920mm
Swing in the gap Ø: 2.050mm
DBC Turning Length: 3000/4000 mm
Gap length: 1.000mm
Spindle bore: 155mm
Spindle power: 51kW
Bed width: 750mm
Tailstock spindle Ø: 160Ø
Stroke pinole: 300mm
Spindle taper: MET 80 Mk
Speeds / ranges: 1200Rpm
Feed rate X-Axis: 8.000mm/min.
Feed rate Z-Axis: 6.000mm/min.
Length: 9.000 mm
Width: 3.500 mm
Height: 3.200 mm

Dealer name:

Mach4Metal Netherlands, Babberich
