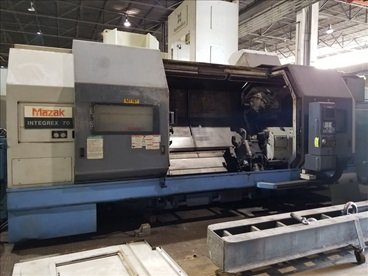

Description:
Maximum Swing: 36",Swing Over Carriage: 27",Distance Between Centers: 86.8
Specifications:
X-Axis Travel: 27",Y-Axis Travel: +/- 5.91",Z-Axis Travel: 80",Spindle Hole: 4.65",Spindle Speed: 1300 RPM, Spindle Nose: JIS A-100,Maximum Supported Weight: 6,600 lbs., Milling Tool Spindle Speed Range (Standard): 333 - 2700 RPM, Milling Spindle Taper: 50,Turret Positions: 2,Max. Tool Diameter (w/o Adjacent Tools): 6.3",Max. Tool Diameter (w/ Adjacent Tools): 4.0",Max. Tool Length: 18.1",Max. Tool Weight: 44 lbs.
Equipped with: Mazatrol PC-Fusion 640MT CNC Control,60-Tool Automatic Tool Changer, LNS A624001A Hydraulic Programmable Steady Rest,18" Ball Lock Chuck, Tailstock, Chip Conveyor.
Weight:
56000 Lbs
