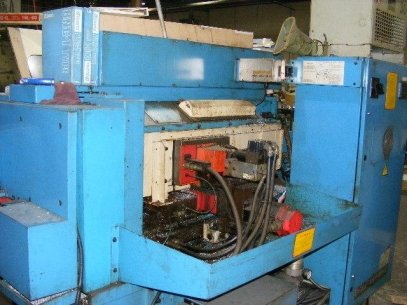

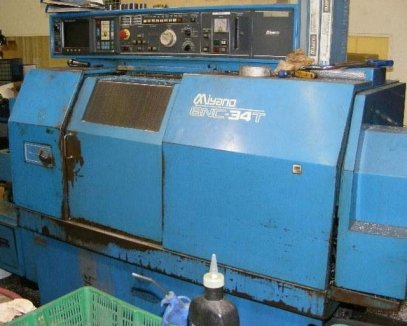

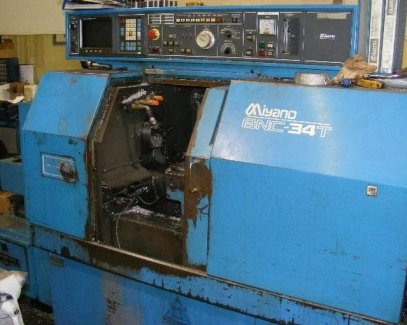

Miyano Model BNC-34T CNC Turning Centre

Bar Capacity-round 1 5/16"
Max. Turning Diameter 4 3/4"
Max. Work Length 7 7/8"
Max. Chuck Work Length 9"
Variable Speed Range 170 - 5,000 RPM
Spindle Motor (30 min. rating) AC 10 HP (AC 7.5kw)
# of Tooling Stations 6
Tool Hole Diameter 1"
Cutting Tool Shank Size 3/4"
Max. Slide Stroke (X-Axis) 3 7/8"
Max. Slide Stroke (Z-Axis) 11 3/8"

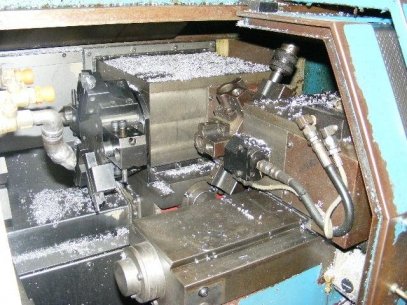

Sub Turret (T-Type)
# of Tooling Stations 6
Slide Stroke (B-Axis 9"
Turret Indexing Time 0.5 sec./1 pos.
Dimensions (approx.)100"l x 59"w x 67"h
Weight (approx.)6,200 lbs

Equipped with:

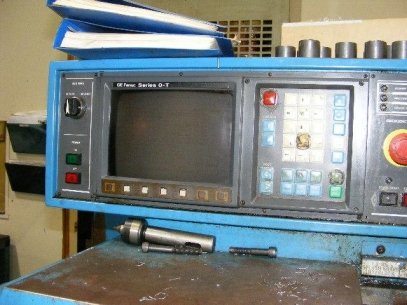

-Fanuc 0-T control
-High pressure coolant 3000psi
-RS232
-Collet chuck (3-jaw chuck may be available)

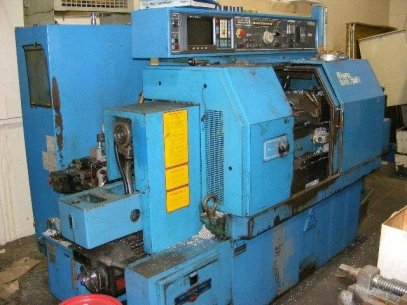

-Bar feed

Can be seen in operation in a plant.
