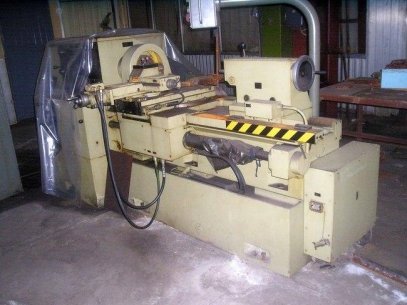

There are 4 identical rear sale lathes NILES DH 250/4 to! Swing over rear rotary slide 250 mm center height above rear rotary slide 150 mm Height of centers over bed 300 mm turning length 630 mm, length 1000 mm, swivel range of the rear pivot ski Ttens 360 swivel range of the cross slide 360 bore of the spindle 27 mm quick-withdrawal 40mm Hinterdrehhub, continuously into 4 ranges of 0 - 32 mm spindle speeds , continuously in 4 areas 1 - 400 rpm /. Return speed adjustable from 2.5 to 630 U / min Longitudinal: 18, 0,063 - 10 mm / rev metric threads from 0.4 to 225 mm Pitch - Inch 0.016 to 9 thread - Module 0.16 to 71 mm thread - DP 200 - 0, 4 mm / "Spannutensteigung 100-20000 4-800 mm" divisible coefficients 2-48 Power of main drive motor 380 V, 50 Hz 9 kW weight 6500 kg
