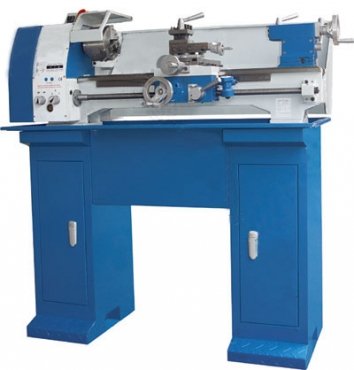

NOAH, TURN240G, TURNING, LATHES

Max. swing over bed

Φ250mm

Φ250mm

Distance between centers

550mm

750mm

Spindle bore

26mm

26mm

Taper of Spindle bore

MT4

MT4

Range of Spindle speeds

125-2000rpm

125-2000rpm

Taper of tailstock quill

MT2

MT2

Metric threads can be cut

0.2-4mm

0.2-4mm

Inch threads can be cut

8-56TPI

8-56TPI

Motor power

750W

850W

NW/GW

130/155Kg

150/180Kg

Package size（L×W×H）

1200X560X580mm

1400X560X580mm

Dealer name:

Jinan Sunny Machinery Co., Ltd. China, Yangzhou
