Description:

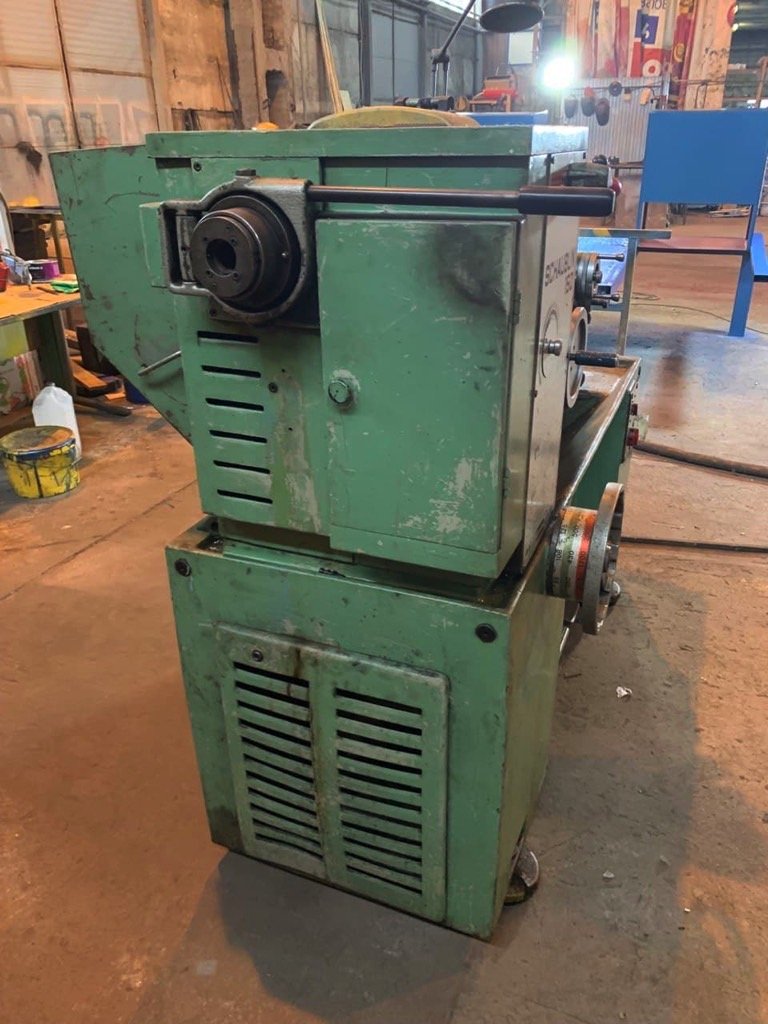

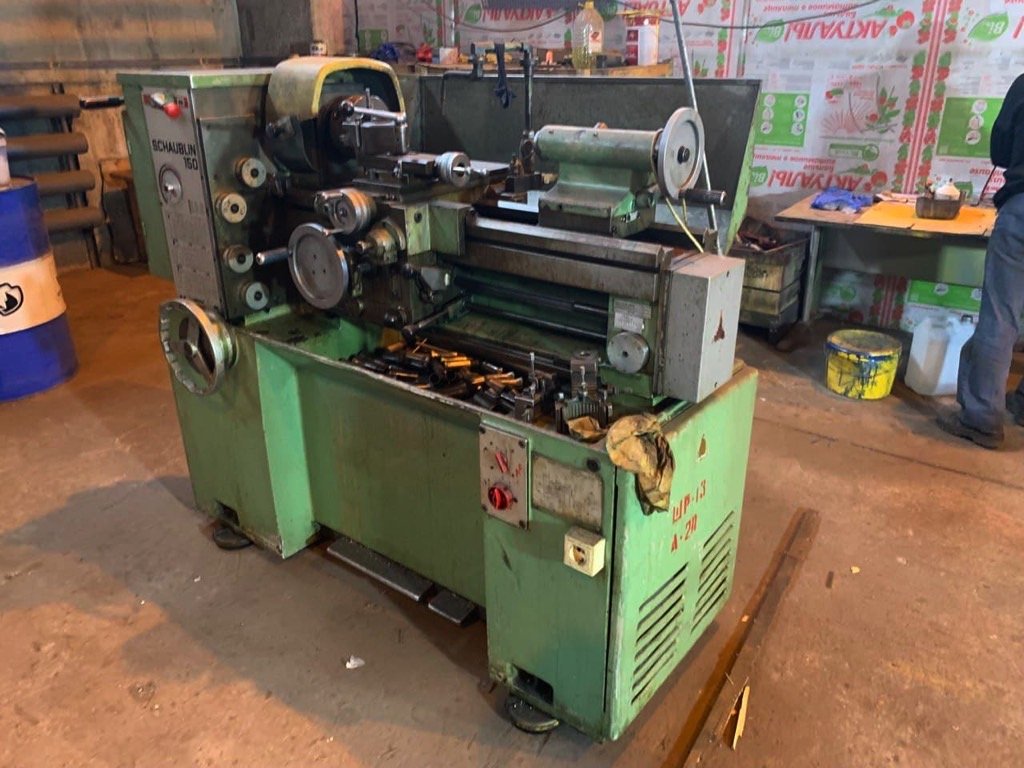

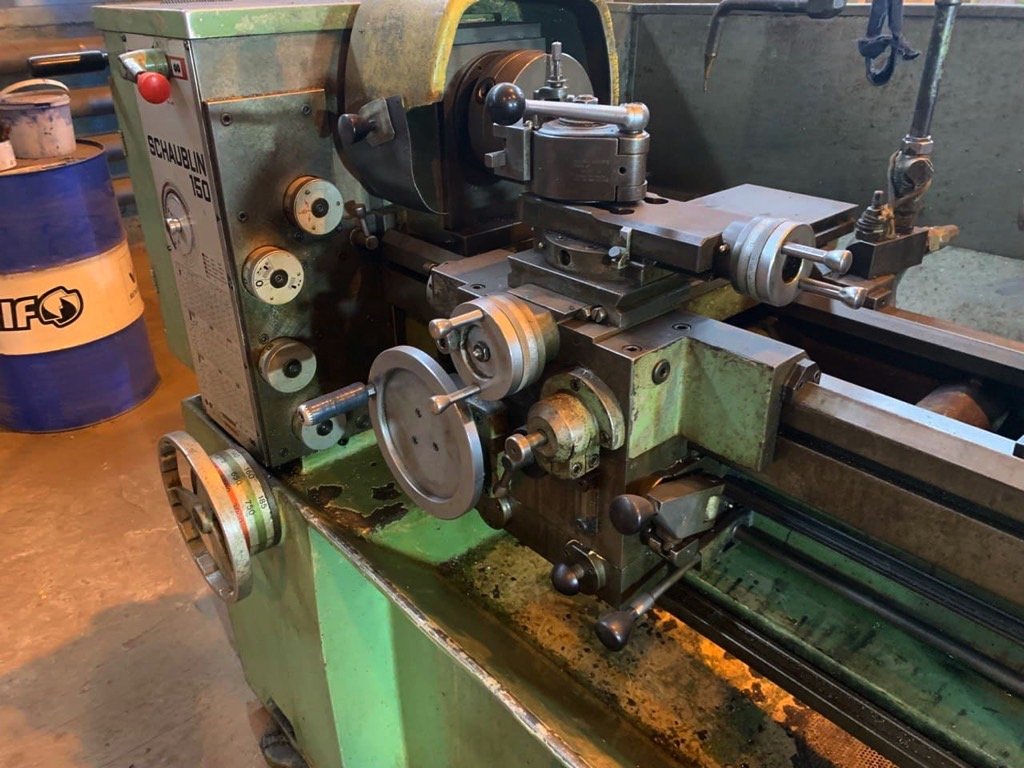

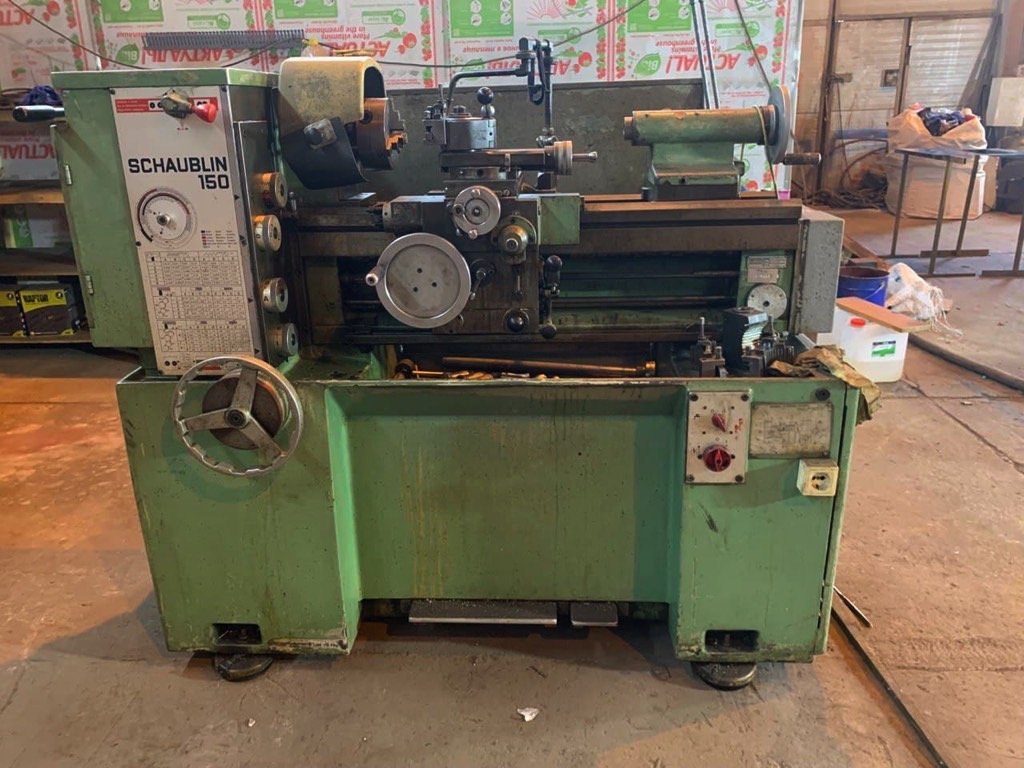

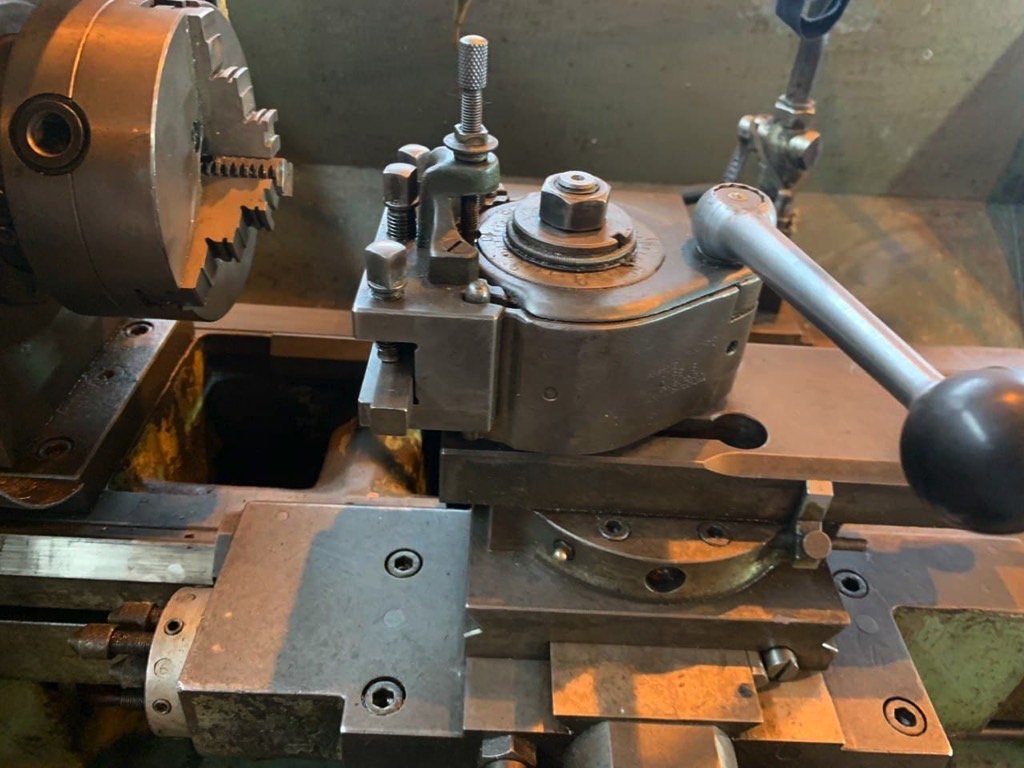

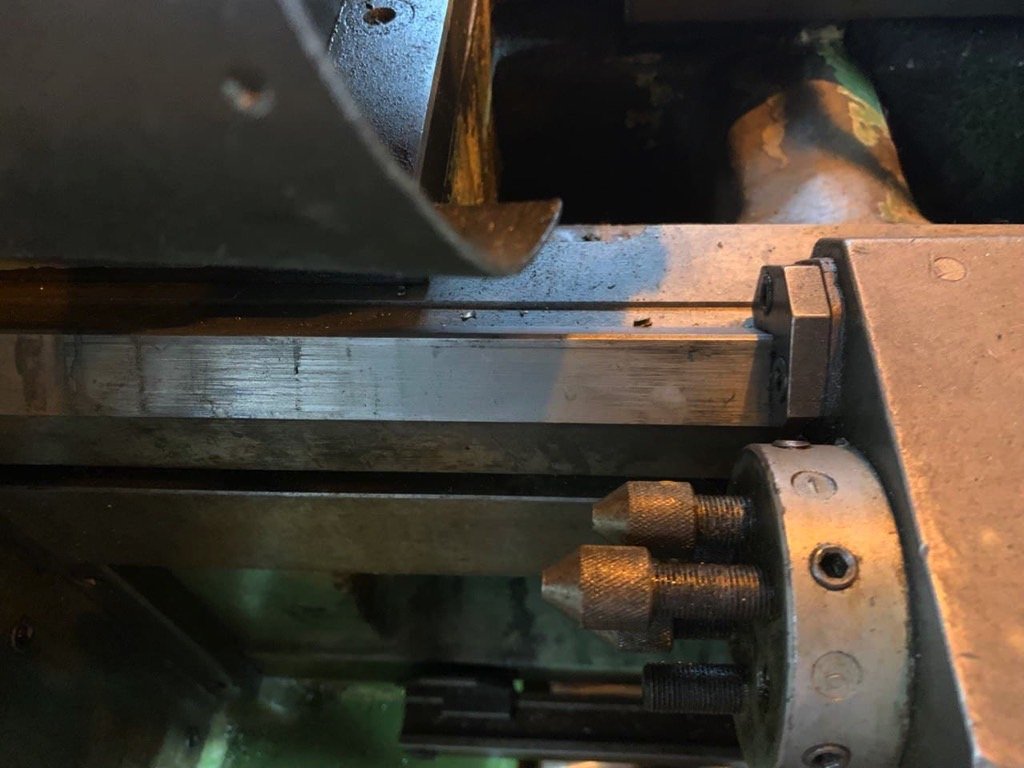

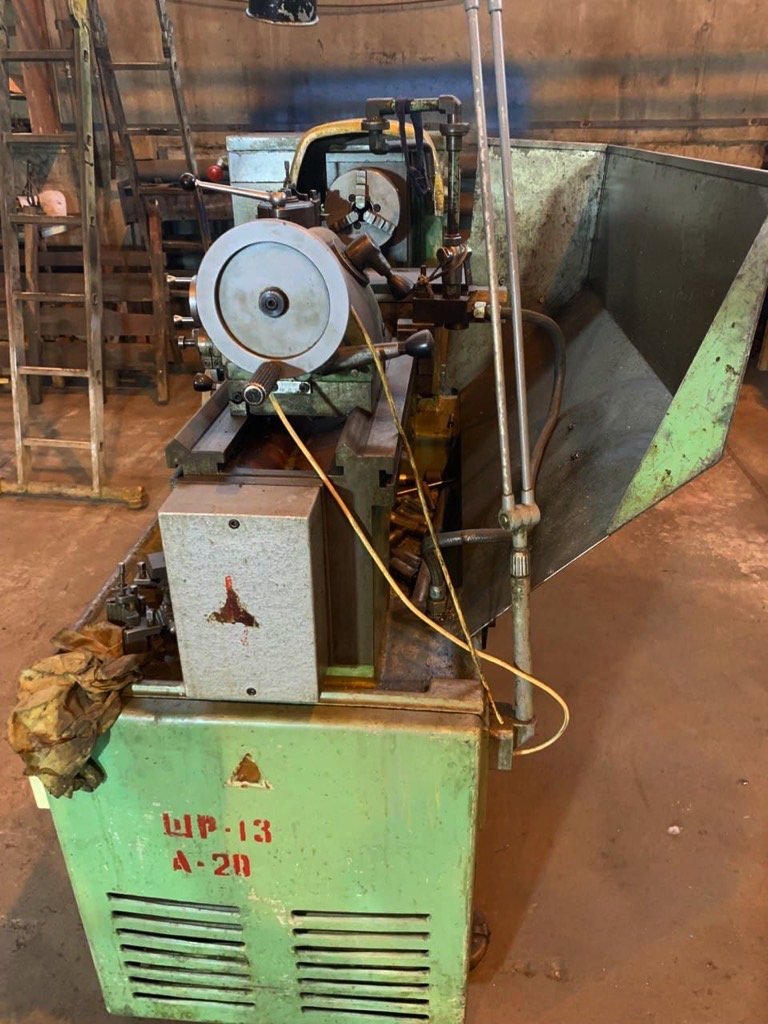

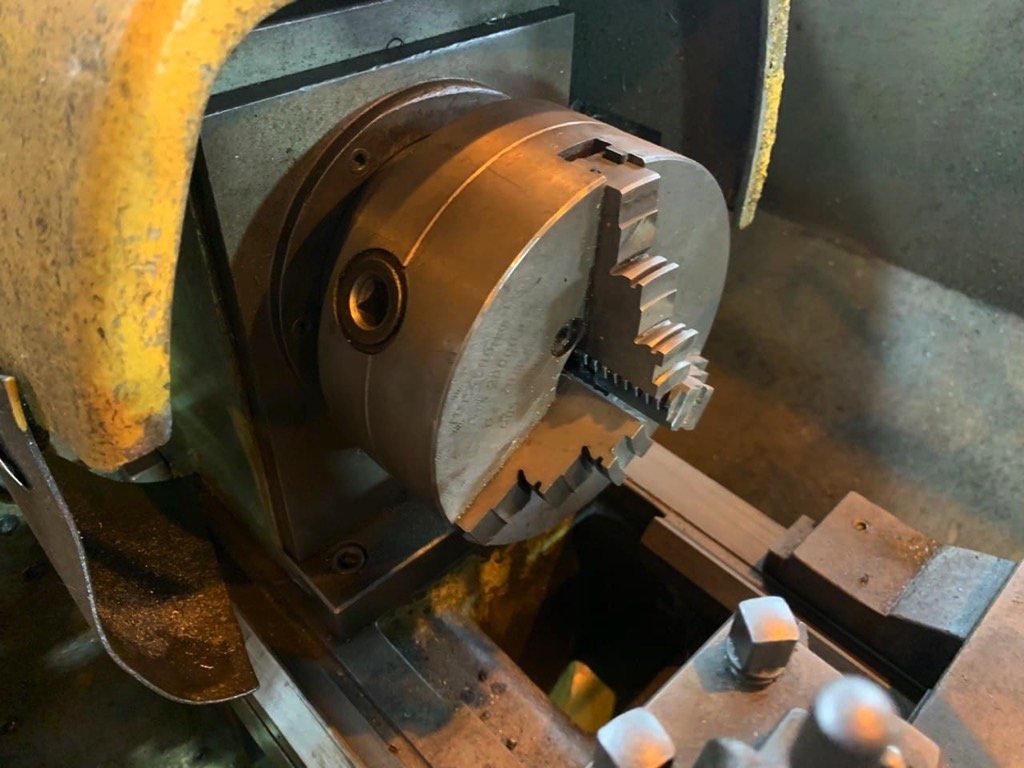

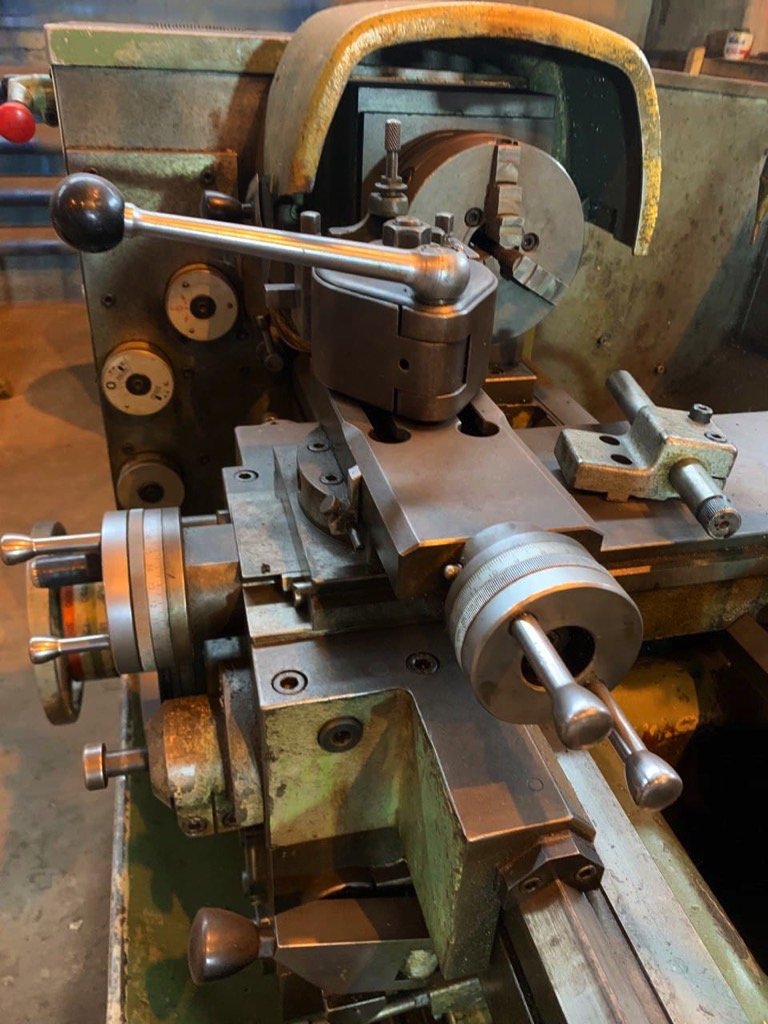

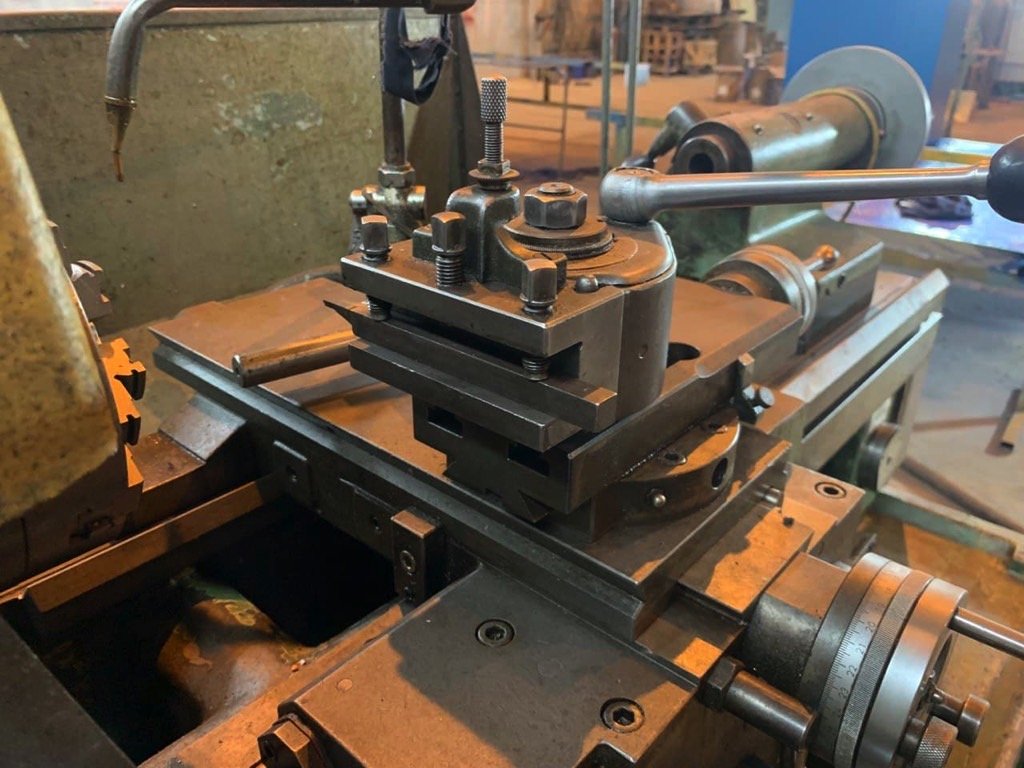

High-precision turning and screwcutting lathe SCHAUBLIN 150. Manufacturer: Schaublin SA. Made in: Switzerland. Height of centres: -Above bed: 150 mm, -Above tool slide: 33 mm; Max. distance between centres: 600 mm; Net weight, version A (standard equipment): 1250 kg; Overall dimensions (length x depth x height): 1230x970x1300 mm
Specifications:
Height of centres:
-Above bed: 150 mm
-Above tool slide: 33 mm
Max. distance between centres: 600 mm
Diameter admitted:
-Above bed: 340 mm
-Above carriage: 177 mm
-In spindle bore: 40 mm
-In B32 collet: 24 mm
-In stationary or travelling steady: 100 mm
Spindle nose: D 1-4" CAMLOCK
Spindle internal taper: No 5 MORSE
Spindle speeds, drive by variator: 55-3000 rpm
Spindle speeds, direct drive: 220-3000 rpm
Spindle speeds with headstock reduction unit engaged: 55-750 rpm
Max. size of tools: 20x20 mm
Traverse on bed:
-Apron: 600 mm
Longitudinal stroke:
-Swivelling tool slide: 100 mm
-1 turn of the handwheel is equivalent to a traverse of: 2 mm
Transverse stroke:
-Carriage cross slide: 180 mm
-1 turn of the handwheel is equivalent to a traverse of: 3 mm
Accuracy of reading on handwheel verniers: 0,01 mm
24 longitudinal and transverse normal feeds: 0,025-0,35 mm/rev
24 longitudinal and transverse fine feeds: 0,015-0,21 mm/rev
36 screwcutting feeds for metric pitches: 0,25-14 mm
36 screwcutting feeds for English pitches: 112-1½ tpi
38 screwcutting feeds for module pitches: 0,125-7,5 modules
Longitudinal rapid automatic feed: 4,0 m/min
Spindle internal taper: No 3 MORSE
Longitudinal stroke of spindle: 120 mm
Transverse adjustment: ±10 mm
Main motor:
-2,0/750 kW-rpm
-4,0/3000 kW-rpm
Rapid-feed motor: 0,35/1500 kW-rpm
Coolant-system motor: 0,15-3000 kW-rpm
Lubrication-system motor: 0,15-3000 kW-rpm
Total electric power installed: 4,65 kW
Capacity of coolant tank: 29 litres
Dimensions:
1230x970x1300 mm (length x depth x height)
Weight:
Net weight, version A (standard equipment): 1250 kg
