VDF BOEHRINGER, DUS 560 Ti, TURNING, LATHES

Condition:Used
Category:LATHES
Type:TURNING
Manufacturer:VDF BOEHRINGER
Model:DUS 560 Ti
YOM:2002
Location:Netherlands, BABBERICH
Price:On request
Stock No:7734
Control:CNC
ID:AS29631

Details in PDF

Send request

Report incorrect information

+ Add to shortlist

Copy offer link

Description:

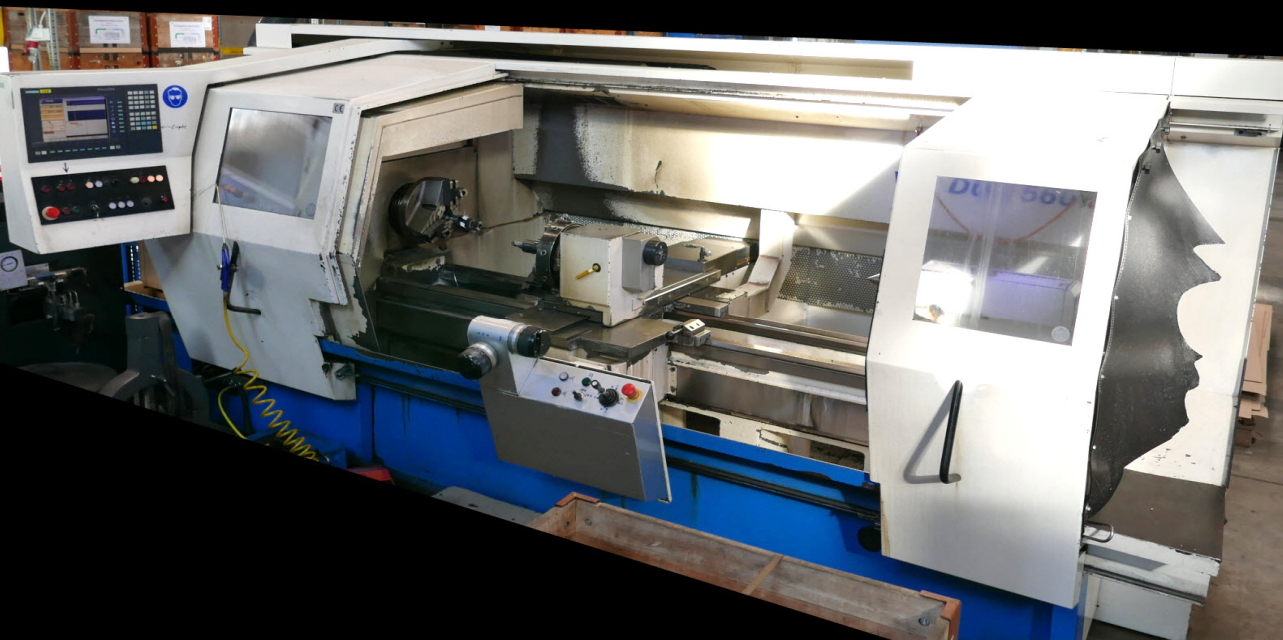

Teach-in lathe
VDF BOEHRINGER - DUS 560 Ti
MACH-ID 7734
Make: VDF BOEHRINGER
Type: DUS 560 Ti
Control: Siemens Sinumrik
Year: 2002

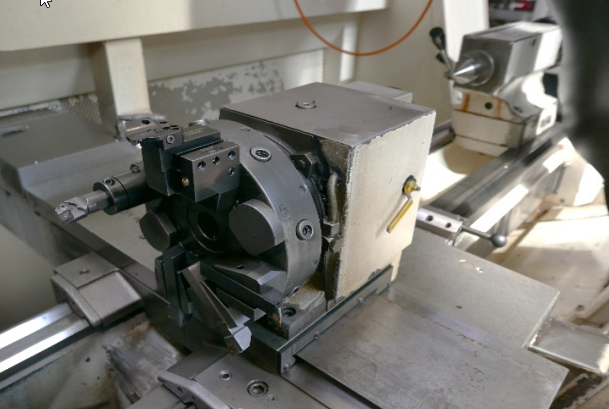

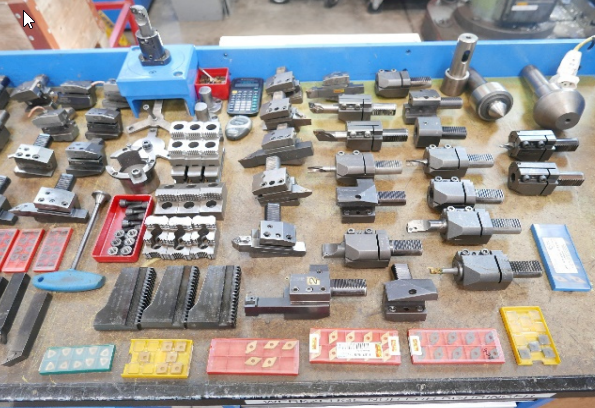

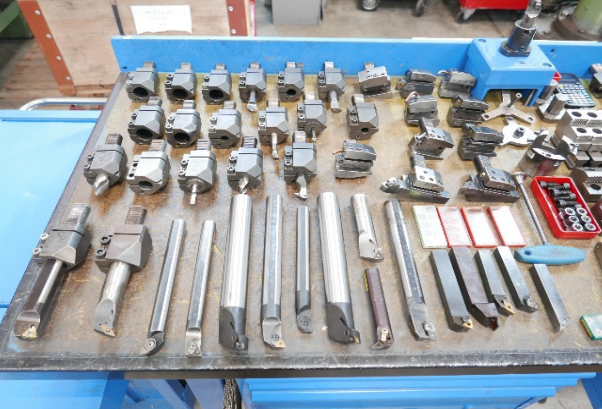

Turret with Vdi 40 + inserts
Servo handwheels with feed

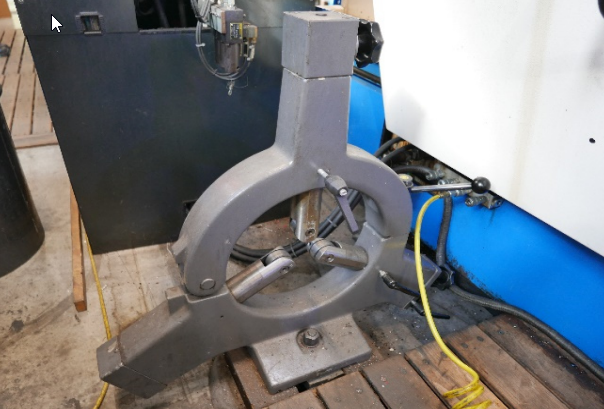

Steady rest

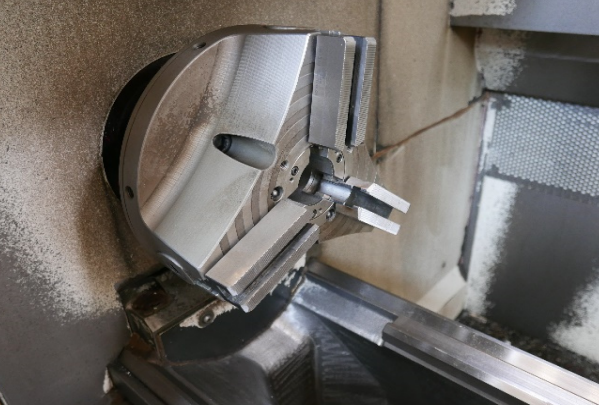

3 chuck with jaws

Swing over bed Ø: 570mm
Swing over cross slide Ø:365mm
DBC Turning Length: 1500mm
Spindle bore: 62mm
Spindle power: 19kW
Bed width: 360mm

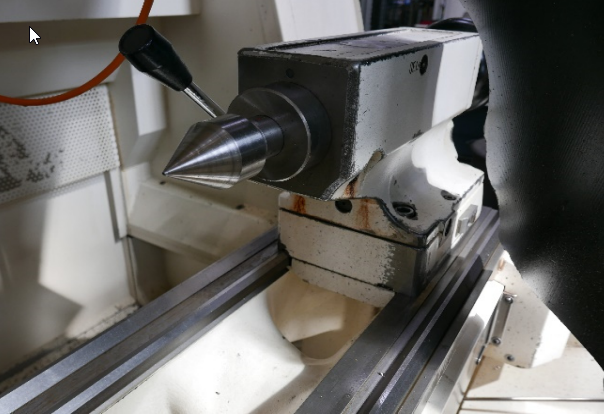

Tailstock spindle Ø: 80Ø
Stroke pinole: 190mm
Spindle taper: 5Mk
Workpiece weight: 1600
Speeds / ranges: 2500Rpm
Feed rate X-Axis: 5000mm/min.
Feed rate Z-Axis: 10000mm/min.
Length: 5500mm
Width: 2100mm
Height: 2000mm
Weight: 5200kg

Specifications:

Teach-in lathe
VDF BOEHRINGER - DUS 560 Ti
MACH-ID 7734
Make: VDF BOEHRINGER
Type: DUS 560 Ti
Control: Siemens Sinumrik
Year: 2002
Turret with Vdi 40 + inserts
Servo handwheels with feed
Steady rest
3 chuck with jaws

Swing over bed Ø: 570mm
Swing over cross slide Ø:365mm
DBC Turning Length: 1500mm
Spindle bore: 62mm
Spindle power: 19kW
Bed width: 360mm
Tailstock spindle Ø: 80Ø
Stroke pinole: 190mm
Spindle taper: 5Mk
Workpiece weight: 1600
Speeds / ranges: 2500Rpm
Feed rate X-Axis: 5000mm/min.
Feed rate Z-Axis: 10000mm/min.
Length: 5500mm
Width: 2100mm
Height: 2000mm
Weight: 5200kg

Dealer name:

Mach4Metal Netherlands, Babberich
