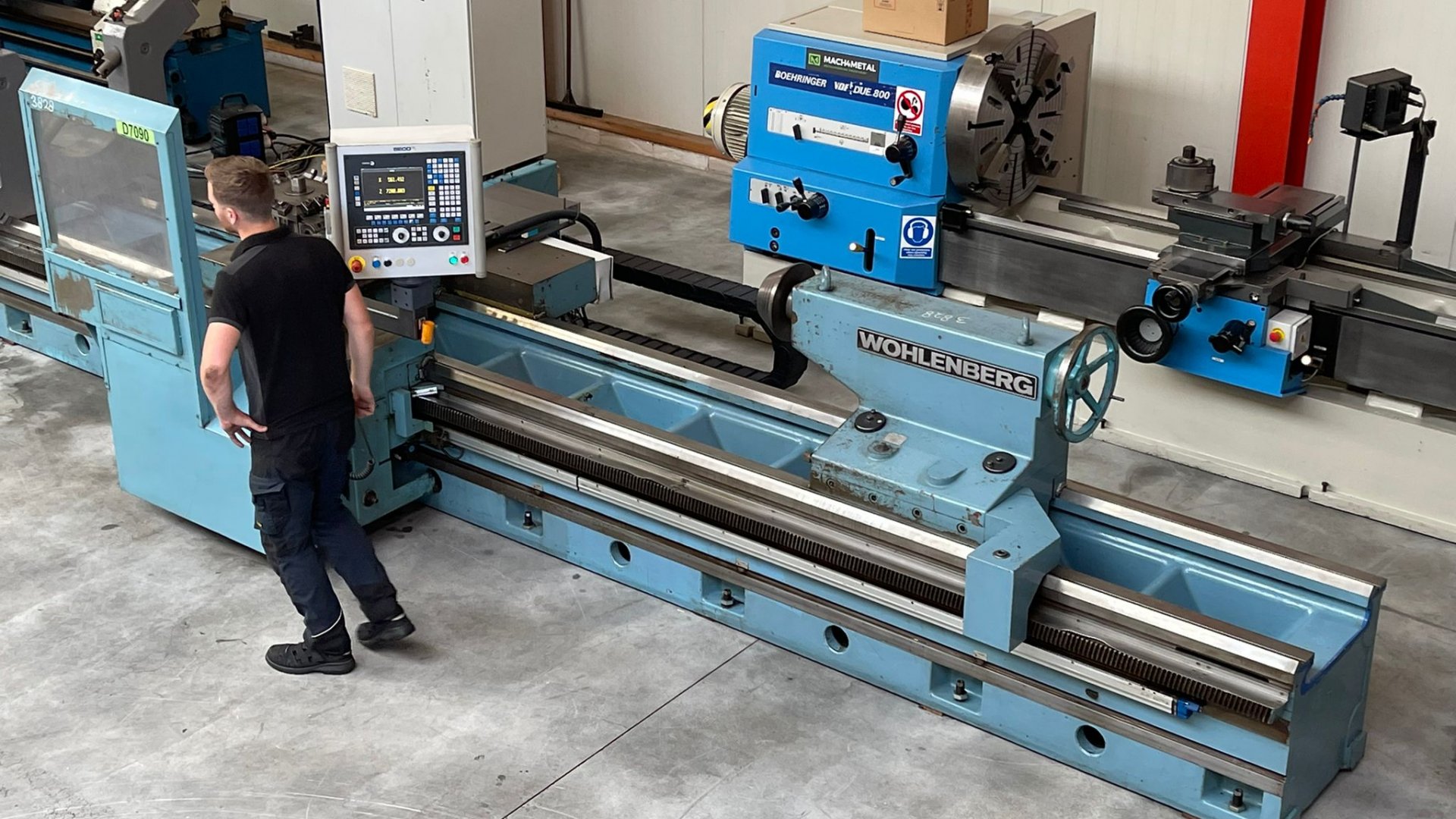

VDF WOHLENBERG, U 900, TURNING, LATHES

Condition:Used
Category:LATHES
Type:TURNING
Manufacturer:VDF WOHLENBERG
Model:U 900
YOM:2010
Location:Netherlands, BABBERICH
Price:On request
Stock No:6822

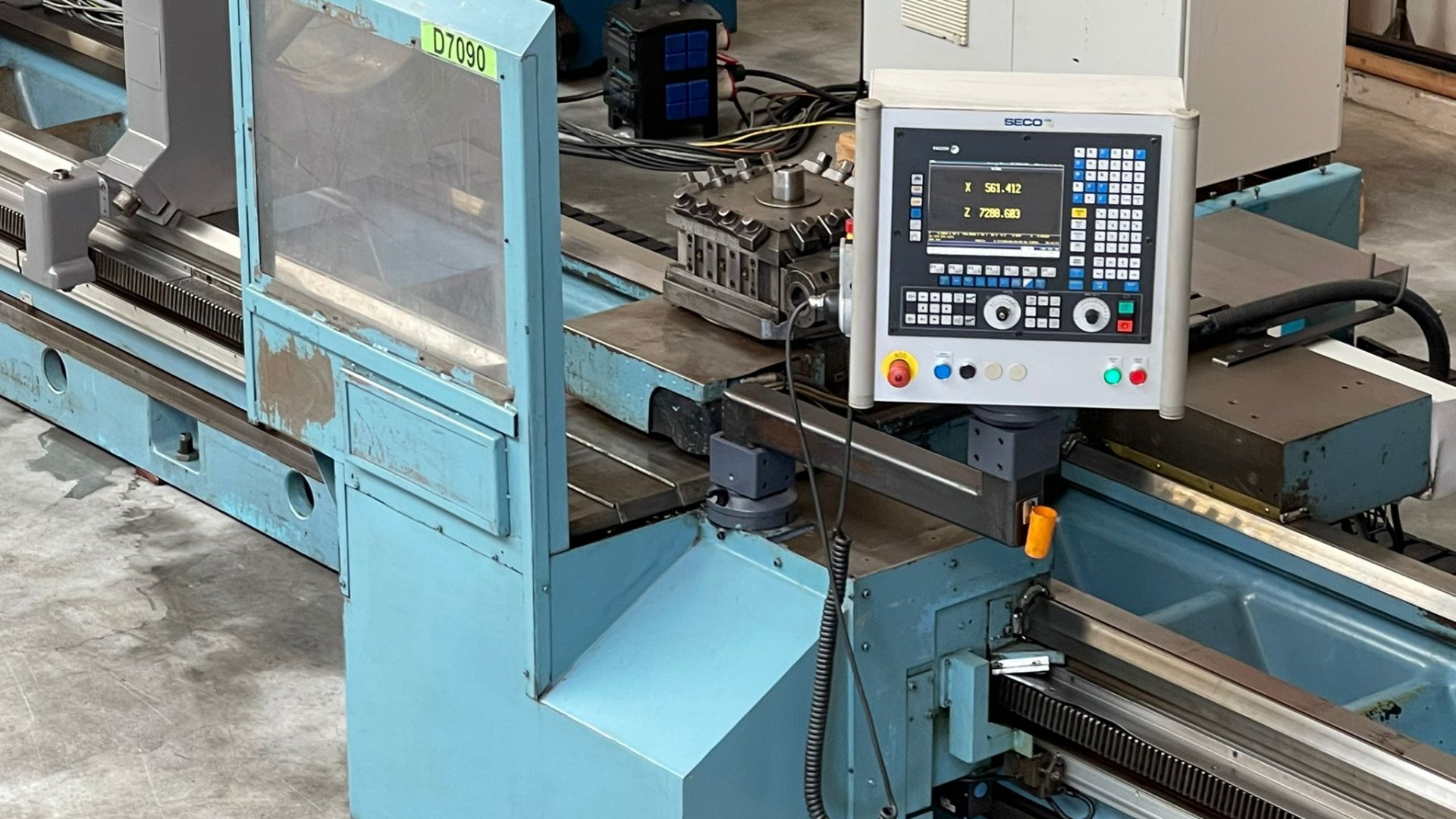

Control:CNC
ID:AS29151

Details in PDF

Send request

Report incorrect information

+ Add to shortlist

Copy offer link

Description:

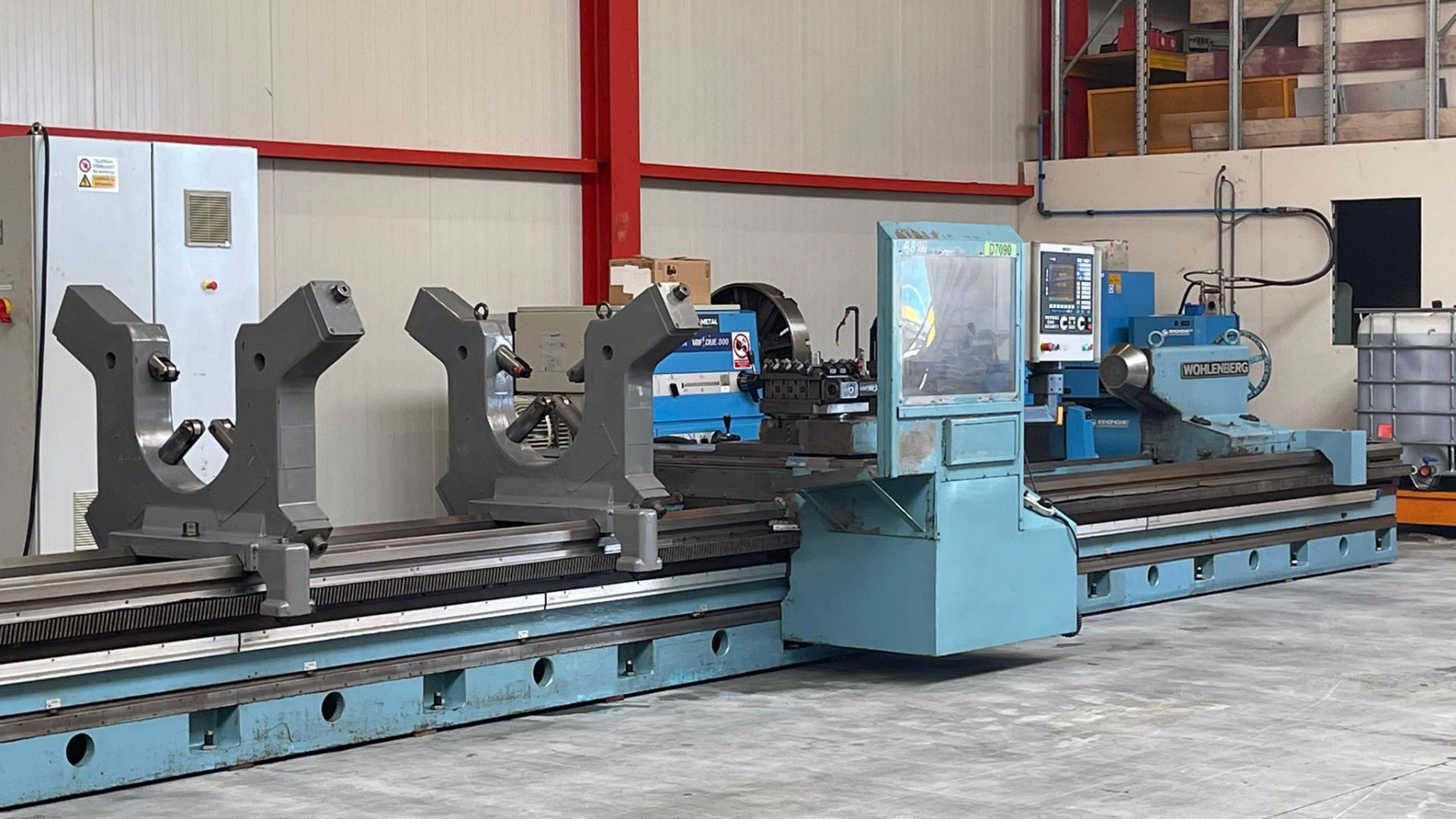

2 x open steady rest Ø 500
1 x closed steady rest Ø 250
2 x boring bar support Ø 195

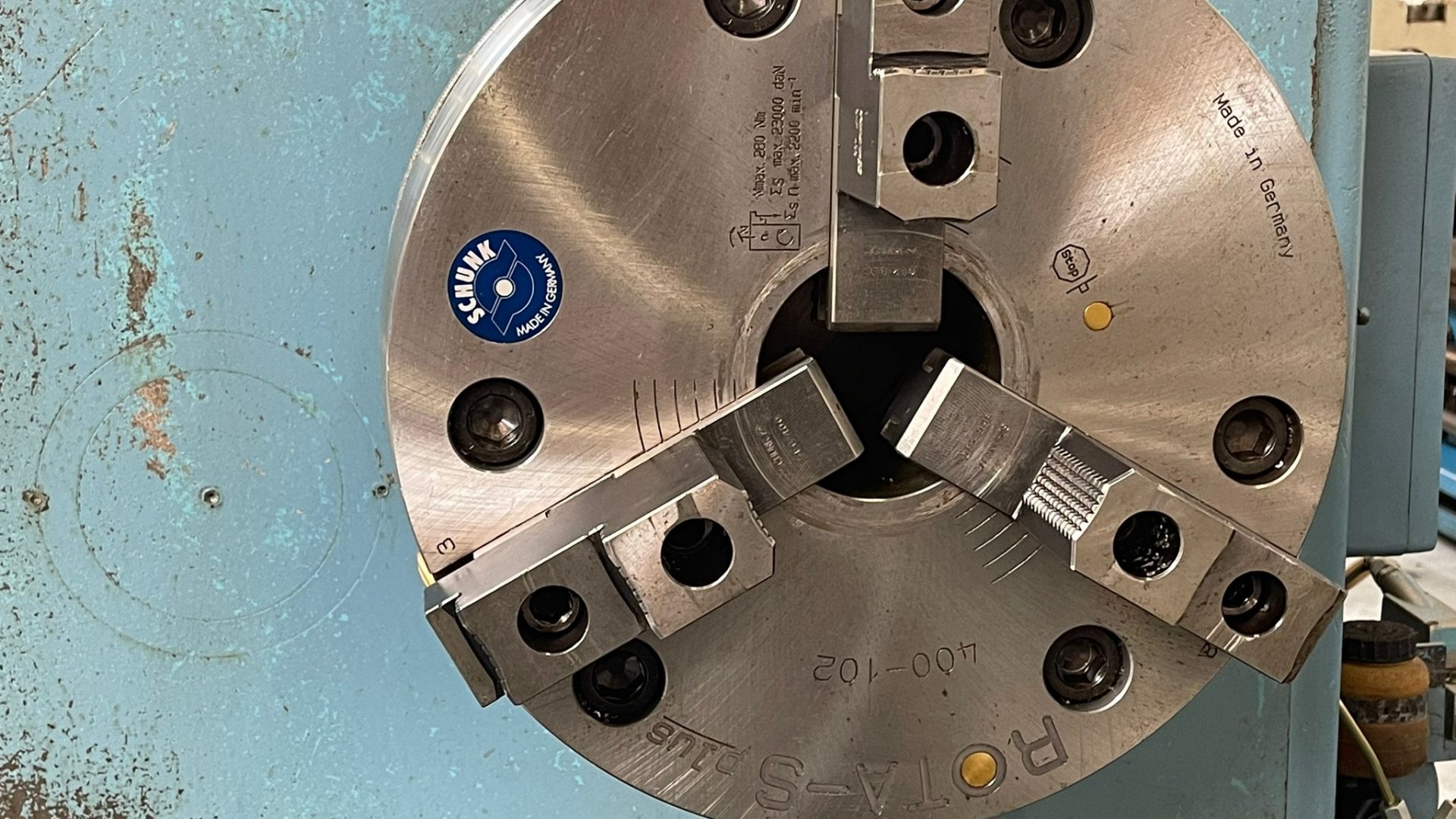

Schunk 3 chuck Roto-S Plus 400-102
Chip conveyor
4 position Capto revolver 360 x 360 mm
Swing over bed Ø: 920mm
Swing over cross slide Ø:530mm
DBC Turning Length: 10.000mm
Spindle bore: 120mm
Spindle power: 56kW

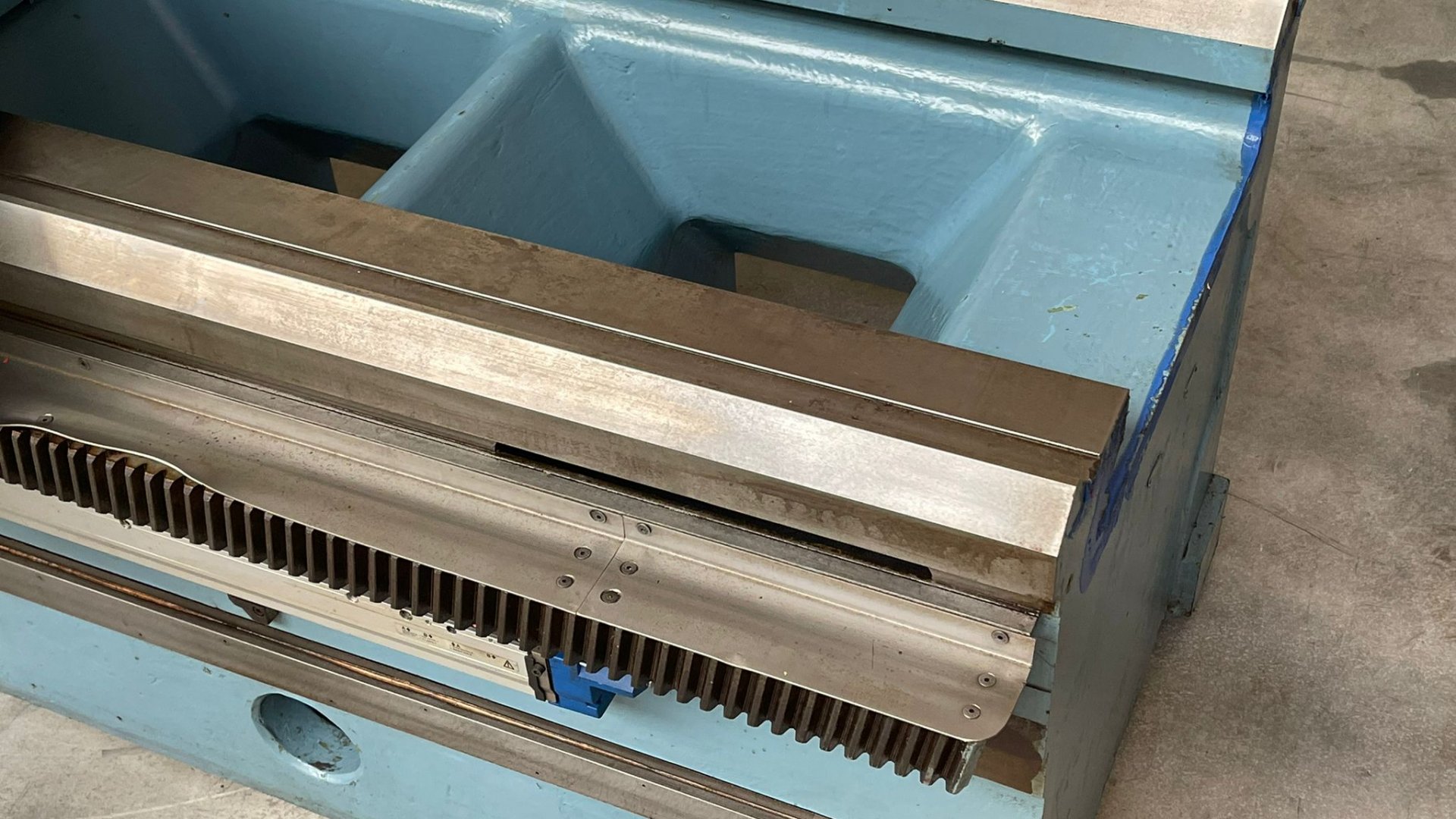

Bed width: 710mm
Tailstock spindle Ø: 160Ø
Stroke pinole: 400mm
Spindle taper: 6Mk
Workpiece weight: 10.000Kg
Speeds / ranges: 1120Rpm
Feed rate X-Axis: 10.000mm/min.
Feed rate Z-Axis: 10.000mm/min.
Length: 13.800 mm
Width: 2.900 mm
Height: 2.000 mm
Weight: 20.000 kg

Specifications:

2 x open steady rest Ø 500
1 x closed steady rest Ø 250
2 x boring bar support Ø 195
Schunk 3 chuck Roto-S Plus 400-102
Chip conveyor
4 position Capto revolver 360 x 360 mm
Swing over bed Ø: 920mm
Swing over cross slide Ø:530mm
DBC Turning Length: 10.000mm
Spindle bore: 120mm
Spindle power: 56kW
Bed width: 710mm
Tailstock spindle Ø: 160Ø
Stroke pinole: 400mm
Spindle taper: 6Mk
Workpiece weight: 10.000Kg
Speeds / ranges: 1120Rpm
Feed rate X-Axis: 10.000mm/min.
Feed rate Z-Axis: 10.000mm/min.
Length: 13.800 mm
Width: 2.900 mm
Height: 2.000 mm
Weight: 20.000 kg

Dealer name:

Mach4Metal Netherlands, Babberich
