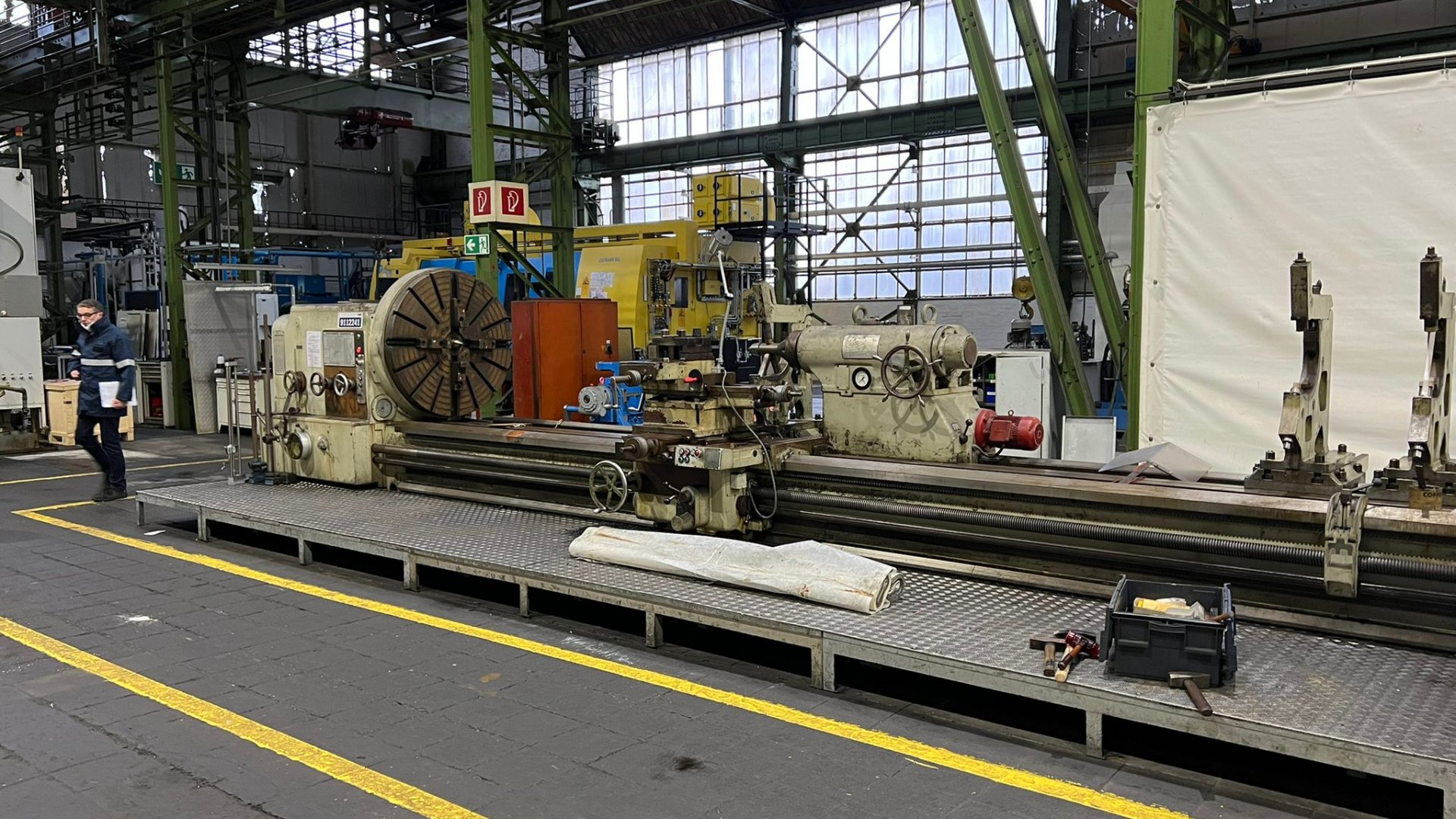

VDF Wohlenberg - V 1250 B Turning lathe Ø 1250 x 6000 mm = Mach4metal 6947
incl. 4 chuck 1200 mm with jaws

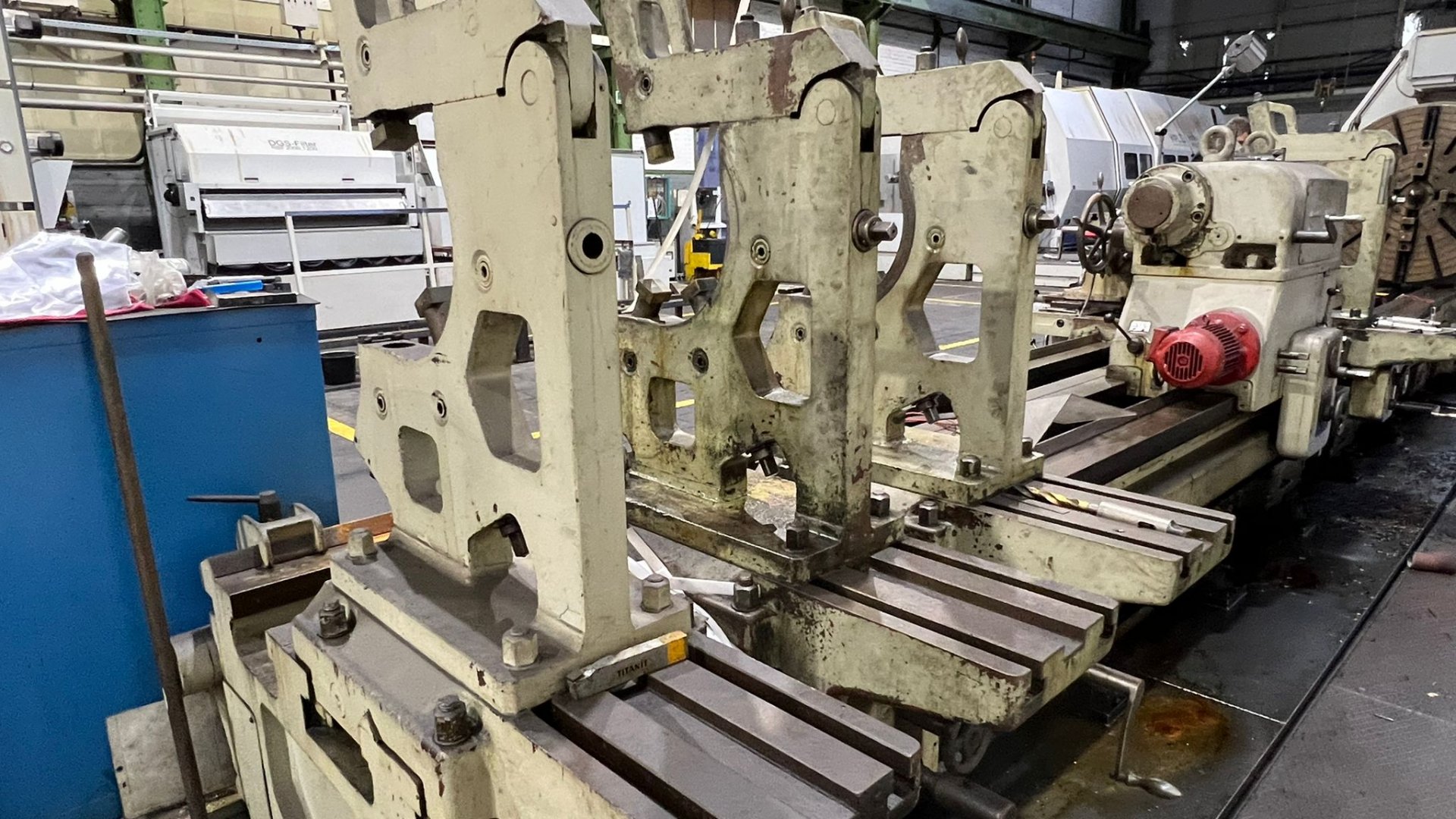

incl. 4 x steady rest
Max work load 12.500 Kg
Motorised tailstock
4 = 3 + 1 bed way construction
Swing over bed Ø: 1.250mm
Swing over cross slide Ø:1.005mm
DBC Turning Length: 6.000mm
Spindle bore: 82mm
Bed width: 930mm
Stroke pinole: 280mm
Speeds / ranges: 1,4 - 400 Rpm
Feed rate X-Axis: 0,1 - 140 mm/min.
Feed rate Z-Axis: 0,05 - 71 mm/min.
Length: 11.000 mm
Width: 2.500 mm
Height: 1.900 mm
Weight: 21.000 kg
Specifications:
VDF Wohlenberg - V 1250 B Turning lathe Ø 1250 x 6000 mm = Mach4metal 6947
incl. 4 chuck 1200 mm with jaws
incl. 4 x steady rest
Max work load 12.500 Kg
Motorised tailstock
4 = 3 + 1 bed way construction
Swing over bed Ø: 1.250mm
Swing over cross slide Ø:1.005mm
DBC Turning Length: 6.000mm
Spindle bore: 82mm
Bed width: 930mm
Stroke pinole: 280mm
Speeds / ranges: 1,4 - 400 Rpm
Feed rate X-Axis: 0,1 - 140 mm/min.
Feed rate Z-Axis: 0,05 - 71 mm/min.
Length: 11.000 mm
Width: 2.500 mm
Height: 1.900 mm
Weight: 21.000 kg
