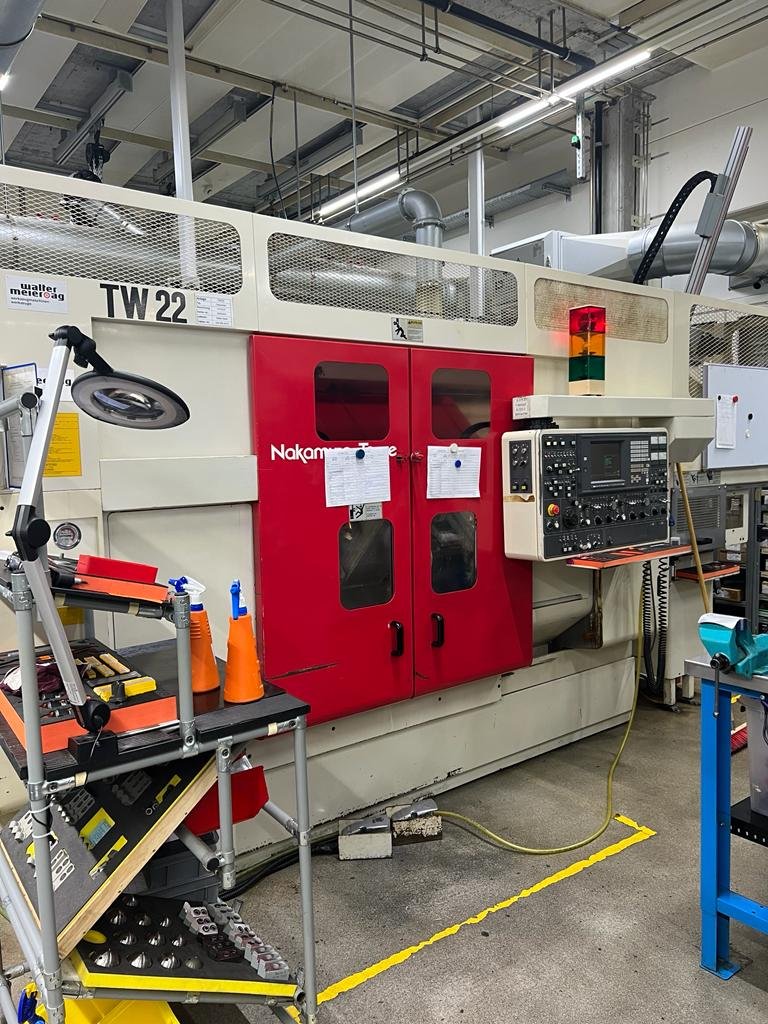

Top off the TW Series; high speed flexible maching

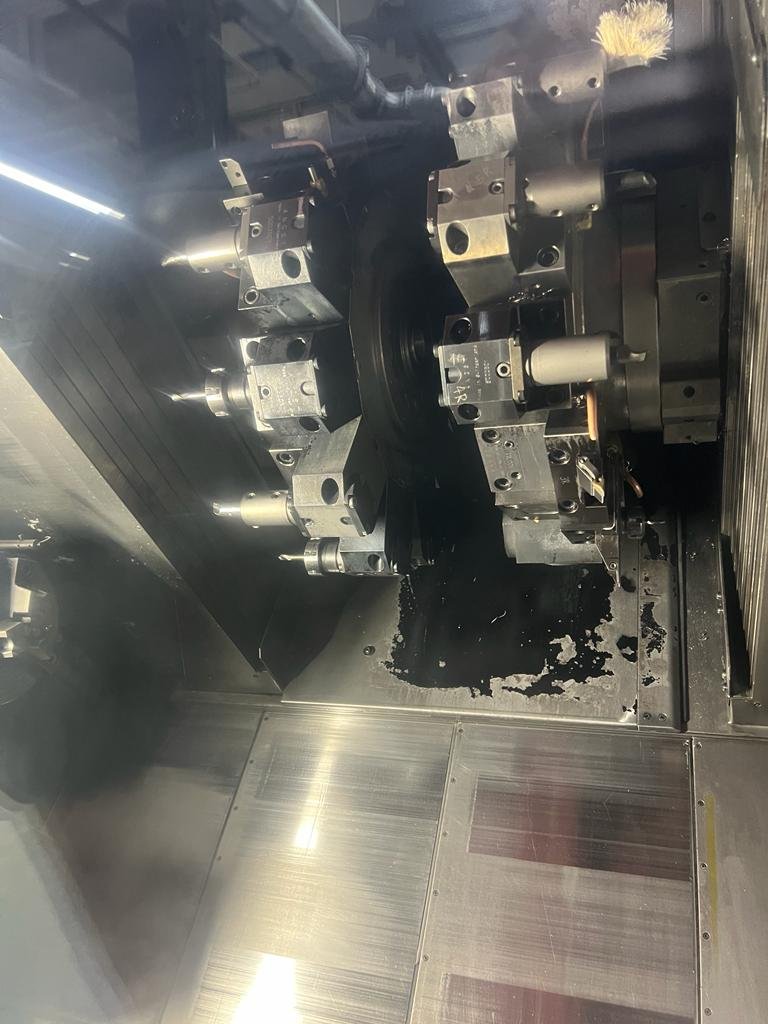

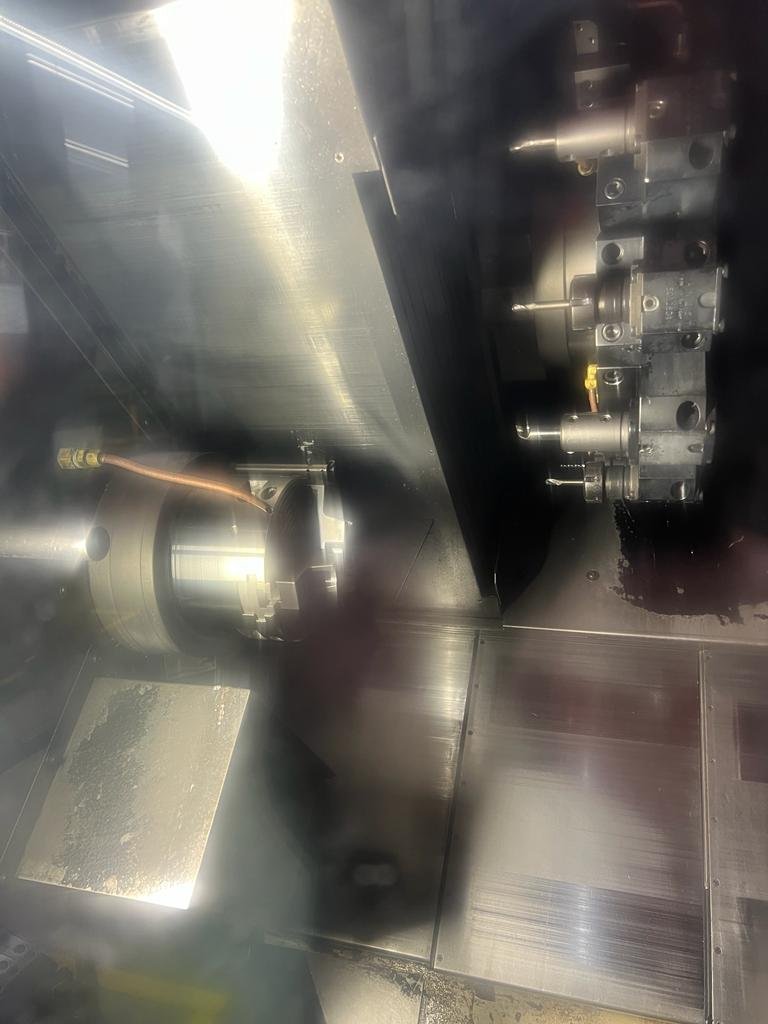

Opposed two-spindle, 2-turret construction!
48tools Number of tool stations
24tools Number of driven-tool stations
90mm Y-axis on Upper Turrets (±45mm)
15/11kW+15/11kW L/R spindle motor
3.7/2.2kW x 2 Driven-tool motor
3600min-1 Driven-tool speed
Loading & Unloading system above machine
Large tooling package
Max. turning Ø: 270mm
X-Axis: 195 mm (X1) and 195 mm (X2)mm
Z-Axis: 165 mm (Z1) and 780 mm (Z2)mm
Spindle bore: 51mm
Speedrange: 5000Rpm
Spindle power: 15kW
Subspindle speeds:5000Rpm
Subspindle bore: 51mm
Subspindle power:15kW
ATC / revolver: 24
Speed live tools:3600Rpm
Power live tools:3,7kW
Length: 3500mm
Width: 3200mm
Height: 2900mm
Weight: 8900kg
