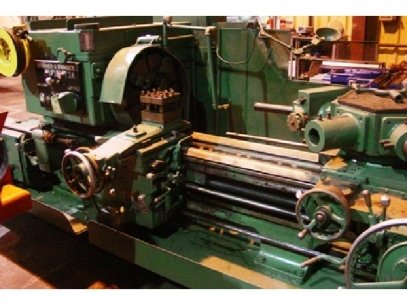

3A Warner & Swasey M-3500 Extra Heavy Duty Square Head Cross Sliding Turret Saddle Type Turret Lathe

Swing over Way Covers 23.5"
Swing over Carriage 18"
Maximum Distance Spindle to Turret Face 59"
Hole Thru Spindle 6.75"
Maximum Length Turned 43"
Cross Slide Longitudinal Travel 51"
Cross Slide Travel 14-3/8"
No. & Range Spindle Speeds (32) 12-851 RPM
No. & Range Feeds for Front Tool Slide: Longitudinal (16) .005 - .107
No. & Range Feeds for Front Tool Slide: Cross (16) .0025 - .082
No. & Range Feeds for Rear Hex Turret: Cross .003 - .096
No. & Range Feeds for Rear Hex Turret: Longitudinal (16) .005 - .167
No. & Range Threads (32) 1 - 32 TPI
Approximate Weight 21,500 lbs
