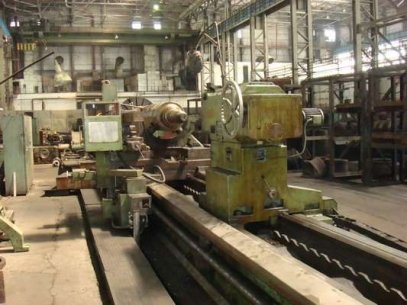

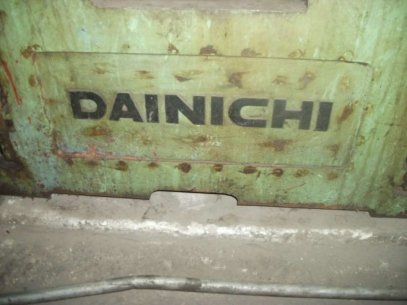

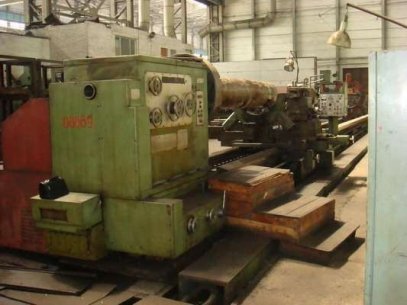

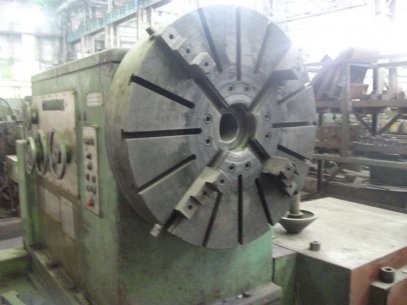

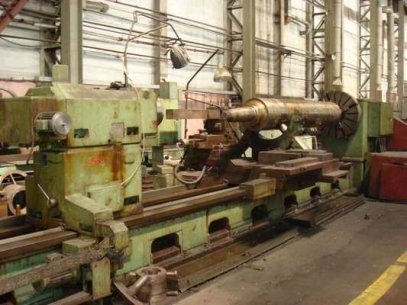

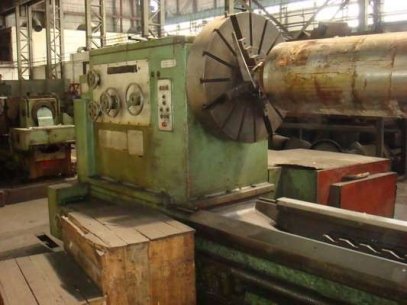

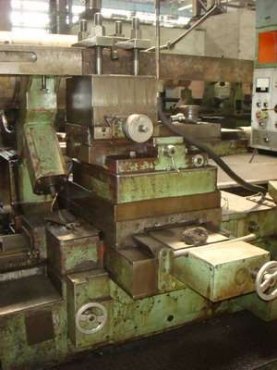

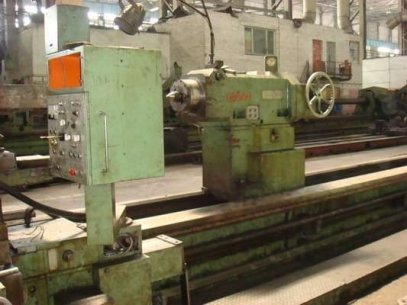

Horizontal lathe DAINICHI H200x2000 made in Germany. Total set. Insignificant wear (less than 25%).
Specifications:
Swing over:
-Bed: 2000 mm
-Support: 1000 mm
Center height: 900 mm
Distance between centers: 20000 mm
Supporting capacity:
-Between centers: 16000 kg
-By chuck only: 4000 kg
Max travel of:
-Support by combined feed: Z axis - 1700 mm, X axis - 1050 mm
-Cross support: 950 mm
-Upper slide: 355 mm
-Toolholder: 125 mm
Rapid traverse of:
-Support: Z axis - 2500 mm/min, X axis - 1250 mm/min
-Upper slide: 630 mm/min
Spindle taper: ANS Nº15, 1/10 meter taper Nº120
Spindle bore diameter: 104 mm
Spindle speed: 20 changes 0,56-400 rpm
Tailstock quill diameter: 160 mm
Max travel of tailstock quill: 250 mm
Rapid traverse of tailstock: 15 m/min
Main drive power: 45 kw
Feed motor: 3 DC kw
