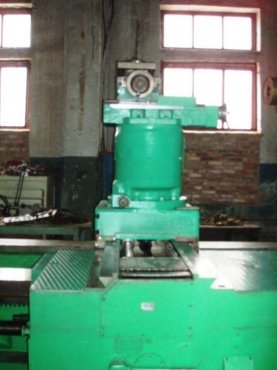

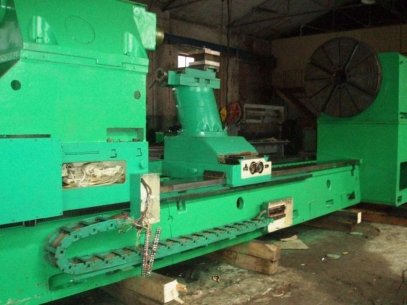

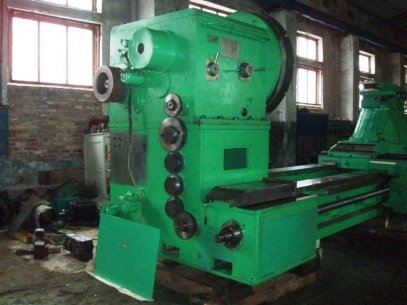

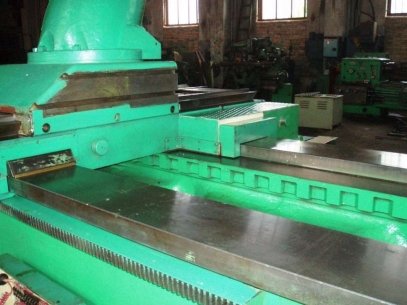

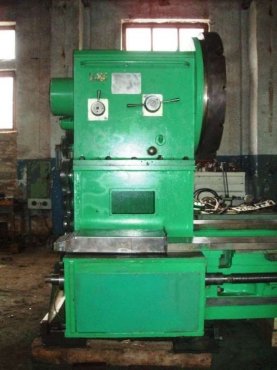

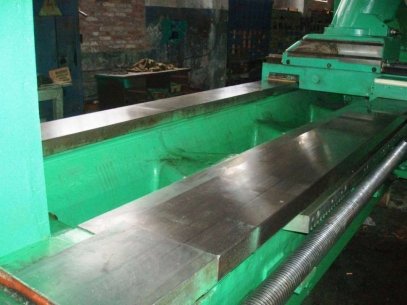

Horizontal lathe KRAMATORSK KZH 16100 made in Russia.
Specifications:
Max work-piece diameter: 2500 mm
Max work-piece diameter above support: 2100 mm

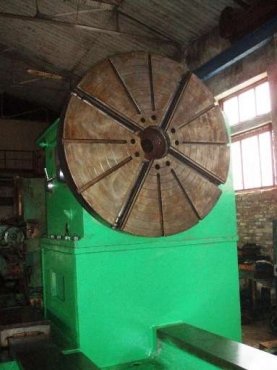

Faceplate diameter: 1250 mm
Max work-piece length: 3850 mm
Max work-piece weight: 16000 kg
Spindle speed range: 1...252 rpm
Number of feed steps: 4
Traverse movement speed range: 0.925...925 mm/min
Cross movement speed range: 0.462...462,5 mm/min
Metric threading steps range: 1...6 mm
Rapid feed: 2,6 m/min
Copying depth: 500 mm
Copying accuracy: 0,2 mm
Tailstock movement speed: 2,26 m/min
Tailstock quill travel: 300 mm
Voltage: 380 V
Frequency: 50 Hz
Main motor power: 60 kW
