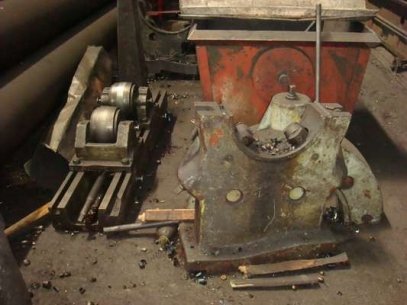

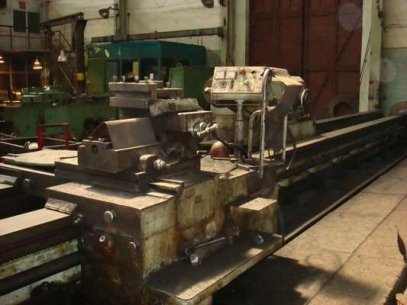

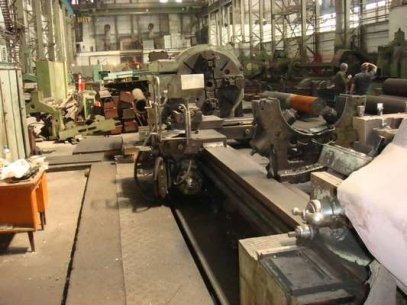

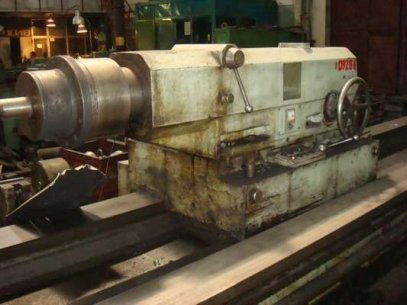

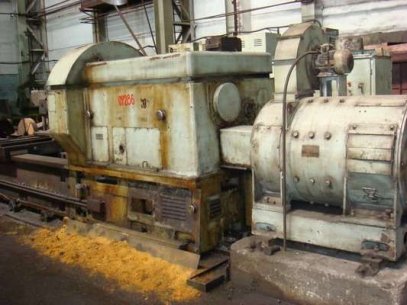

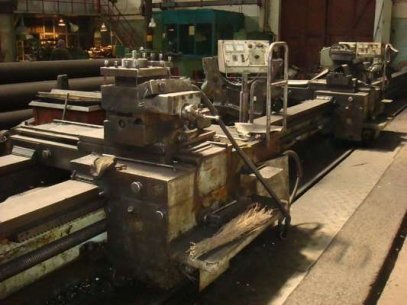

Horizontal lathe KRAMATORSK KZH16134-01 made in Russia.
Specifications:
Height of the centers: 670 mm
Max work-piece diameter:
-Over bed: 1250 mm
-Over support: 900 mm
Work-piece diameter in:
-Closed lunette: 160-360, 320-630 mm
-Open lunette: 560-900 mm
Length of a work-piece: 16000 mm
Max work-piece weight: 25000 kg
Spindle rotation frequency: 1,6-300 rpm
Opening diameter in a spindle: 110 mm
Max spindle torque: 4500 kgm
Limits of:
-Longitudinal support feeding: 0,064-3,26 mm/min
-Cross support feeding: 0,16-8 mm/r
Rapid feeding of the:
-Longitudinal support: 3 m/min
-Cross support: 1,5 m/min
Amount of supports: 3
Max turn angle of a support: +-90 degrees
Thread cutting:
-Metric: 1-96 mm
-Inch (threads for 1''): 20-3
Capacity of the main drive: 55 kw
Voltage: 60,6 V
