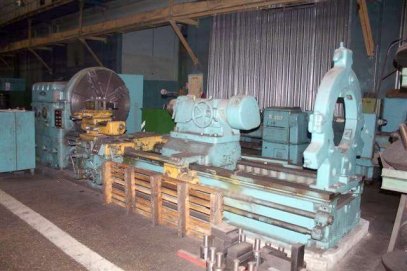

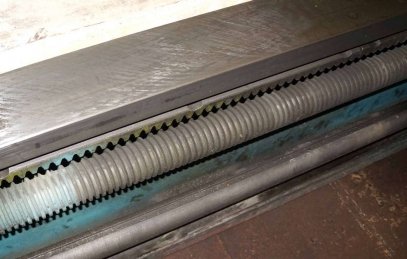

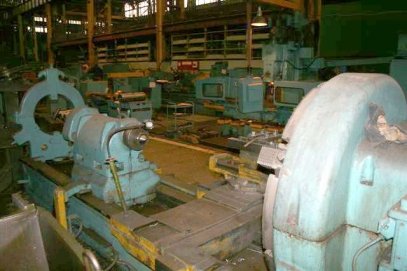

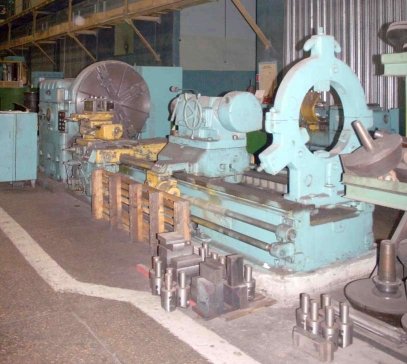

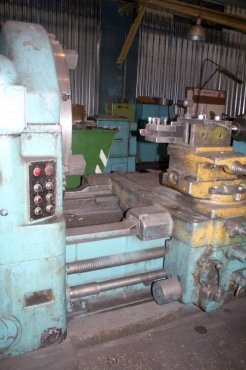

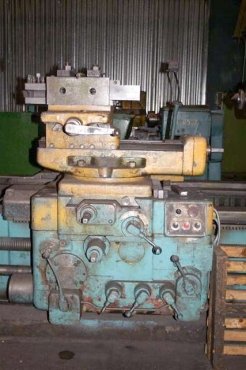

Horizontal lathe SKODA 125/3000 made in Czech Republic. Machine is complete, in working condition, not worn out, the guides kept factory scouring. Machine is set with the screw for thread and lunette cutting. Elements of the electric cabinet are replaced with the modern ones.
Specifications:
Max turning diameter over bed: 1250 mm
Turning diameter over support: 900 mm
Height of the centers over bed: 630 mm
Max work-piece weight: 14 ton
Work-piece length: 3000 mm
Max torque of the faceplate: 3150 kgm
Bed:
-Height: 620 mm
-Width: 1100 mm
Number of spindle speeds on 36 levels:
-I row: 1,4-71 rpm
-II row: 6,3-315 rpm
Diameter of spindle taper: 80/1:10 mm

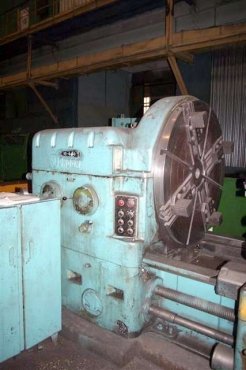

Faceplate diameter: 1250 mm
Max cut of a cutting tool for a:

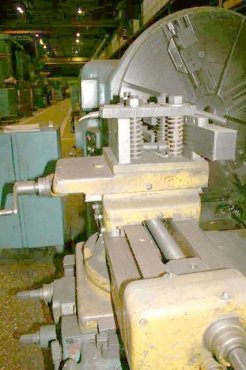

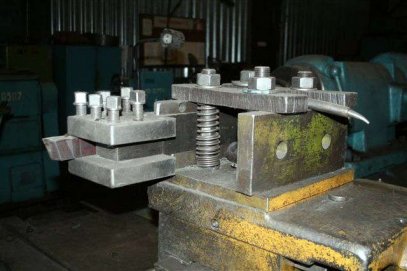

-Toolholder: 70x70 mm
-Turning toolholder: 50x50 mm
Speed of a fast travel longitudinally: 3600 mm/min
Main electric motor:
-Number of turnovers: 1450 rpm
-Power: 37 kW
