Height of the centers: 128 mm
Distance between centers: 530 mm
Max diameter:
-Over the bed: 250 mm
-Over transversal support: 135 mm
Headstock:
Diameter:
-Of the front spindle neck: 63,5 mm
-Of the inner spindle bore: 35,5 mm
Spindle taper: Morse 5
Spindle speed in both directions: 25-4000 rpm
Gearbox and the cutting steps:
Metrical thread (25 steps): 0,25-4,5 mm
Inch thread (27 steps): 72-4 for 1"
Module thread (25 steps): 0,25-4,5 mm
Number of:
-Longitudinal gears: 25; 0,02-0,36 mm
-Transversal gears: 25; 0,01-0,18 mm
Tailstock:
Sleeve taper: Morse 3
Max sleeve travel: 100 mm

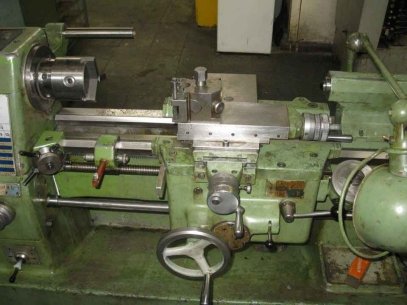

Supports:
Max stroke:
-Of the lower carriage: 470 mm
-Of the transversal carriage: 135 mm
-Of the cutting carriage: 140 mm
Motor:
-Power: 3 kW
-Speed: 1500 rpm
