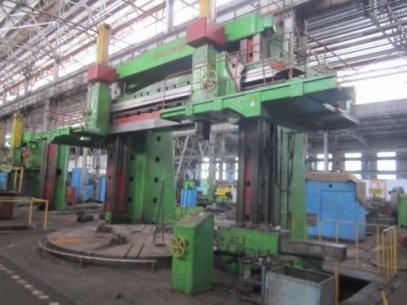

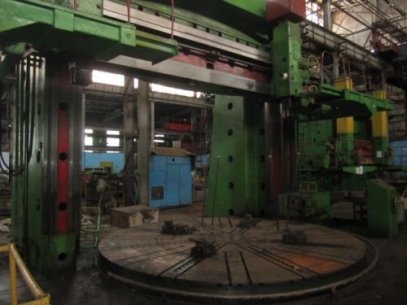

Vertical turning lathe BLANSKO SKD-50 made in Czechoslovakia. Type: Double Column.
Specifications:
Swing: 5300 mm

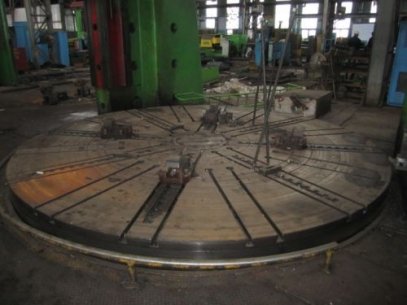

Table diameter: 4770 mm
Max work-piece height: 4000 mm
Max work-piece weight: 100 ton
Max torque: 236 kNm
Main drive motor output: 2x71 kW
Table revolutions:
-1st stage: 0,5-12/min
-2nd stage: 2,5-50/min
Right head - horizontal cross rail travel: 3800 mm
Left head - horizontal cross rail travel: 3300 mm
Side head - vertical cross rail travel: 2800 mm
Crossing of ram axis over the table centre: 20 mm
Ram slide: 2500 mm
Feeds: 0.1-8000 mm/min
Rapid traverse: 8000 mm/min
Ram cross-section: 340x340 mm
Maximum tool cross-section: 50x50 mm
Maximum cutting force: 100 kN
Cross rail stroke: 3000 mm
Traverse speed: 500 mm/min
Main drive: 100 kW
Power of faceplate: 80 kW
Height above floor level: 11500 mm
