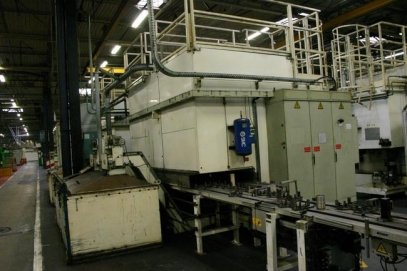

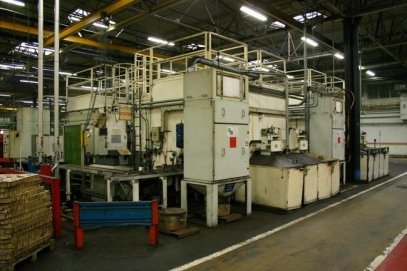

Production Cell consisting of four (4) CNC DANOBAT DANUMERIC TV 200 / CSM
Tandem Twin PickUp-Spindle Vertical-Lathes, new 2000

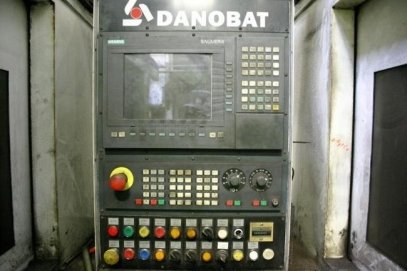

with CNC SIEMENS SINUMERIK 840 D and EWAB conveyor system for the mass production of turning parts
Main Data:
Max turning diameter: 200mm
Max swing diameter: 300 mm
chuck diameter (recommended): 210 mm
Max turning height: 200mm
Turning spindle: 24 kW / 50 – 4.700 rpm
Rapid travel X / Y: 30 m/Min
Space required, L x W x H, ca. 6.500 x 4.500 x 3.500 mm (per Machine)
