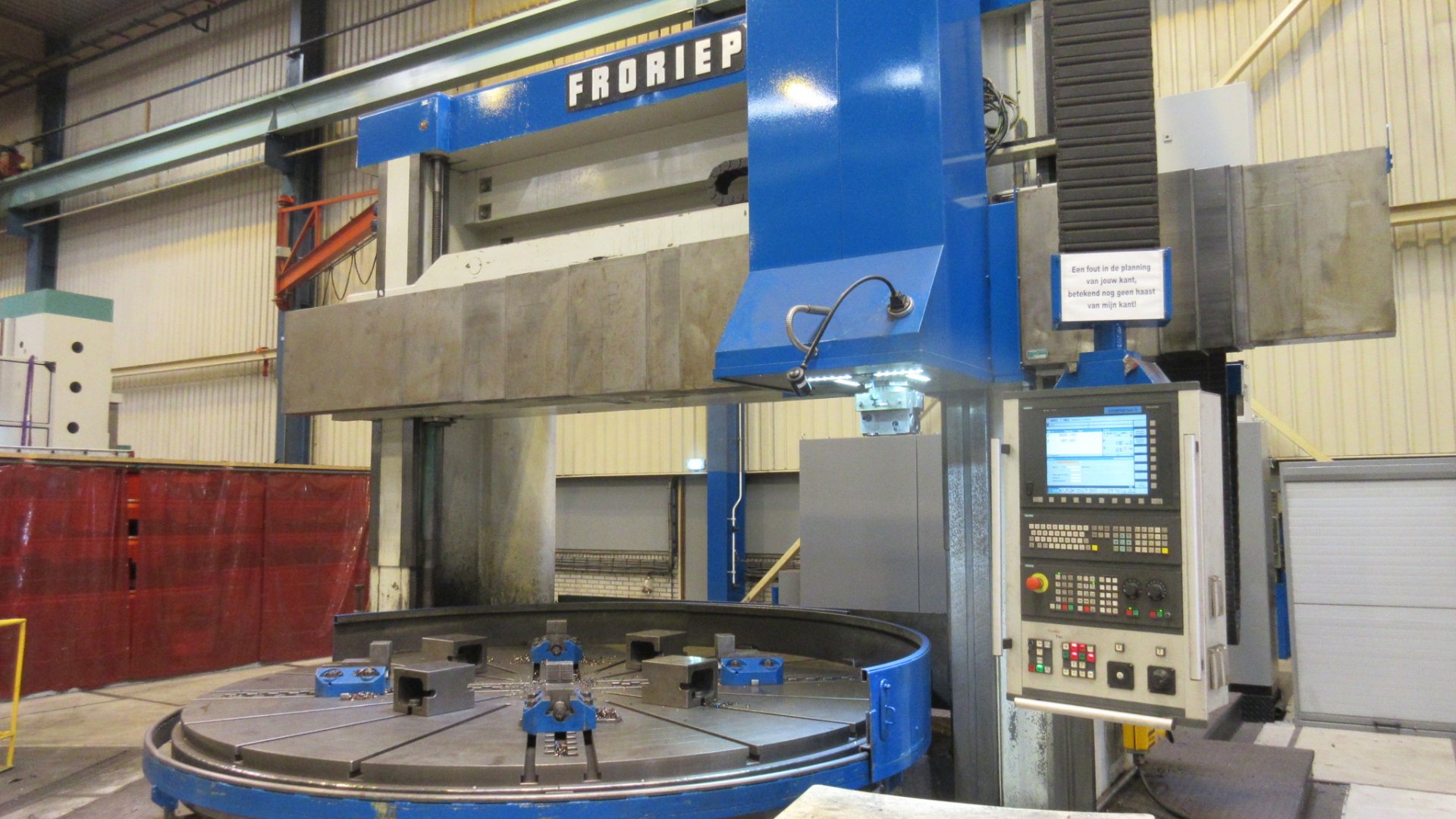

FRORIEP - 6K350 CNC VTL Ø 4000 x 2235 mm x 15 Ton 6917 = Mach4metal
in 2007 new Siemens 840 D with Shopturn
in 2007 new RITTAL electric cabinet
in 2007 new central lubrication

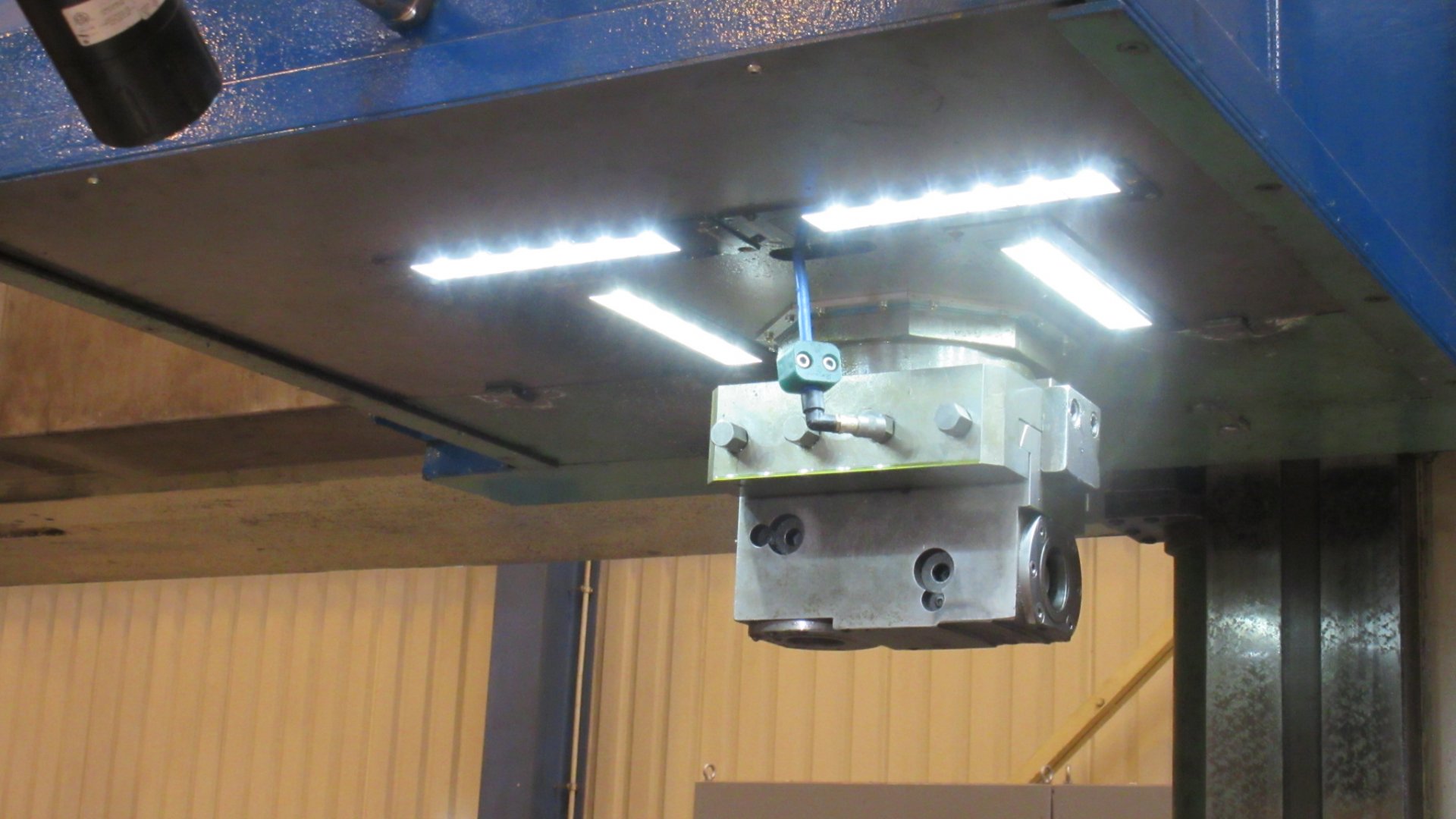

Tool holder with CAPTO C6 connection
Hardned guideways crossrail
Optional set 4 x jaws for chuck
Max. turning Ø: 4.000mm
Table Ø: 3.500mm
Horizontal movement support: 1.750mm
Stroke ram left: 1.100mm
Angle adjustment / ram swivable:30 / 30 °
Speeds / ranges: 1,6 - 70 Rpm
Power: 50kW
Length: 6.000 mm
Width: 6.000 mm
Height: 5.500 mm
Weight: 45.000 kg
Specifications:
FRORIEP - 6K350 CNC VTL Ø 4000 x 2235 mm x 15 Ton 6917 = Mach4metal
in 2007 new Siemens 840 D with Shopturn
in 2007 new RITTAL electric cabinet
in 2007 new central lubrication
Tool holder with CAPTO C6 connection
Hardned guideways crossrail
Optional set 4 x jaws for chuck
Max. turning Ø: 4.000mm
Table Ø: 3.500mm
Horizontal movement support: 1.750mm
Stroke ram left: 1.100mm
Angle adjustment / ram swivable:30 / 30 °
Speeds / ranges: 1,6 - 70 Rpm
Power: 50kW
Length: 6.000 mm
Width: 6.000 mm
Height: 5.500 mm
Weight: 45.000 kg
