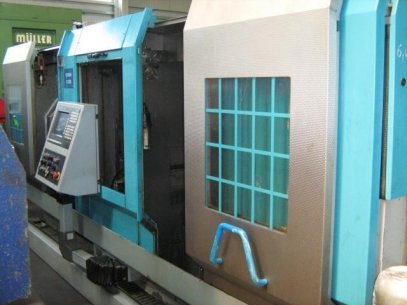

CNC vertical double spindle lathe make INDEX, model V 200 TANDEM

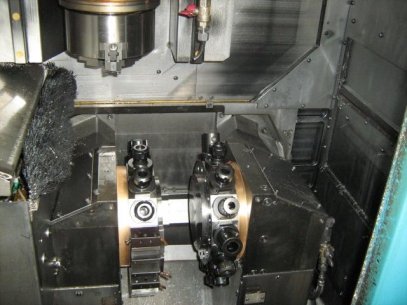

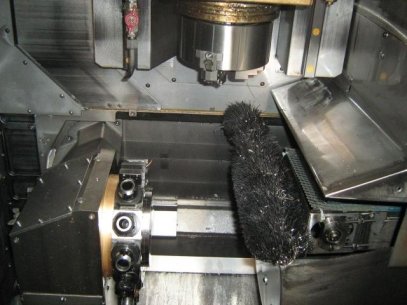

YOM 1996, turning-Ø max. 325 mm, chuck-Ø max. 200 mm, X/Z = 200/520 mm, max. spindle speed 5000 rpm, with 3 x 14 pos. tool turret (each 14 positions are driven), max. speed of tools 6000 rpm, with INDEX-control C 200-4 (basis SIEMENS, SINUMERIK 840 C), with C-axis tandem version consisting of 2 identical spindle drives (main spindle 1 and main spindle 2), also working separately (independent from each other), reversing station integrated between cell 1 and cell 2 for removal and supply of parts from main spindle 1 to main spindle 2 or vice versa, simultaneously to operating of workpiece, cell 1 with automatic workpiece
supply by pallet circulation, cell 2 has to been served manually, acc.: 2 pcs. hydr. 3 jaw-chuck 175 mm Ø, approx. 40 tool holders (various boring and turning tool holders, collet fixtures), chip conveyor make KNOLL with high pressure pump, m-no. 100226
